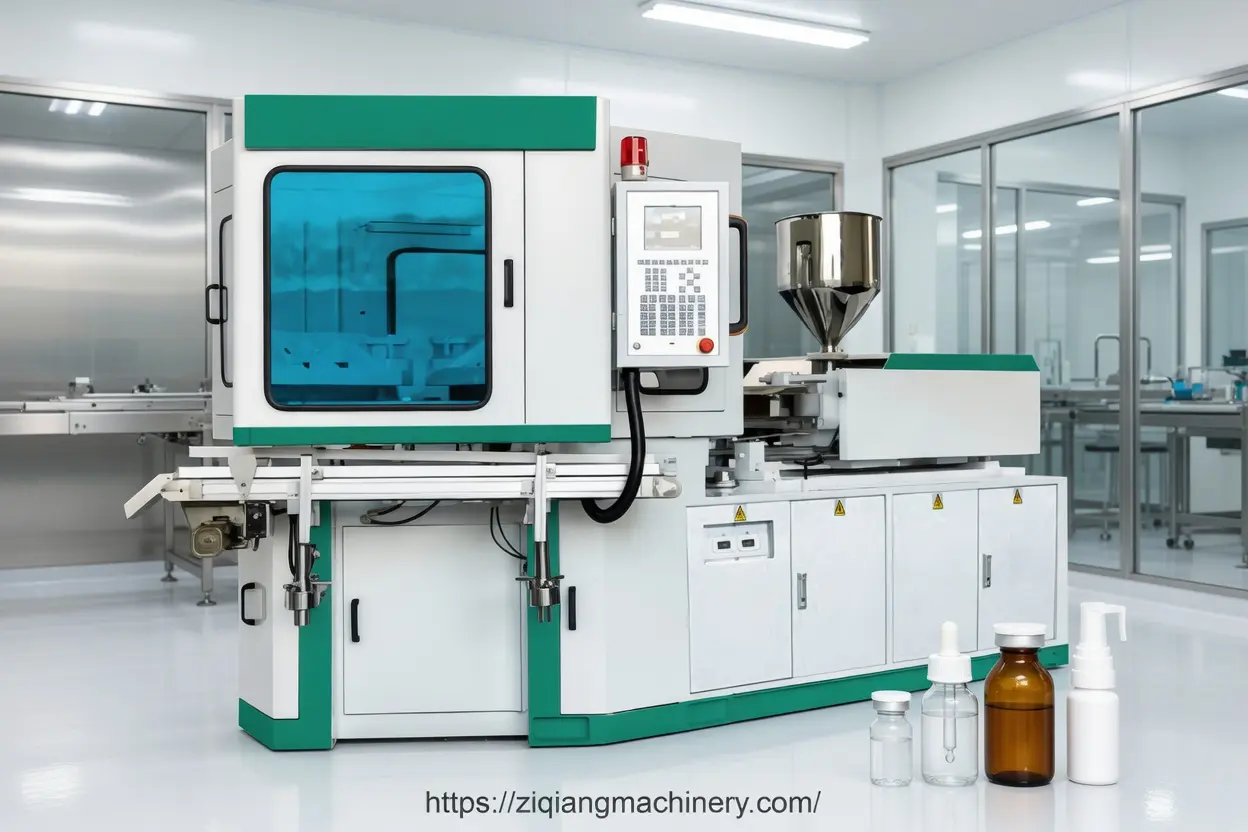

What is a blow injection molding machine and why does it matter for pharma?
A blow injection molding machine — also called an IBM machine — is a specialized piece of equipment that produces hollow plastic bottles by first injecting molten plastic into a preform mold, then blowing it into the final bottle shape. This two-stage process delivers superior dimensional accuracy, consistent wall thickness, and excellent surface finish compared to other molding methods.In the pharmaceutical industry, bottle quality is not optional. Medicines, eye drops, syrups, and tablet containers must meet strict regulatory standards. The machine you choose directly affects:
• Product safety — clean, contamination-free production
• Regulatory compliance — GMP, FDA, and CE standards
• Production efficiency — output rate and reject rate
• Packaging integrity — leak-proof, tamper-evident bottles
Simply put, the right injection blow molding machine protects your product, your patients, and your business.
What are the 3 types of blow injection molding machines used in pharmaceutical packaging?
Not all blow molding machines work the same way. There are three main technologies used in pharmaceutical bottle production:| Machine Type | Full Name | Best For | Key Advantage |
| IBM | Injection Blow Molding | Small pharma bottles (5–500ml) | Highest precision, no flash |
| EBM | Extrusion Blow Molding | Larger containers, handles, HDPE | Low cost, flexible design |
| ISBM | Injection Stretch Blow Molding | PET bottles, high clarity | Superior strength & clarity |
For pharmaceutical bottle production — especially small bottles like eye drops, nasal sprays, and oral liquids — the injection blow molding machine (IBM) is the preferred choice. It produces bottles with no parting lines, no post-trimming waste, and extremely tight tolerances.
IBM vs EBM vs ISBM — which blow molding technology is best for pharmaceutical bottles?
The answer depends on your specific product. Here is a clear comparison to guide your decision:Choose IBM (Injection Blow Molding) if you need:
• Small bottle sizes from 1ml to 500ml• High-precision neck finishes for caps and droppers
• Oil-free, clean production for pharma compliance
• Zero flash or trimming waste
• PP, HDPE, or PE material compatibility
Choose EBM (Extrusion Blow Molding) if you need:
• Larger containers above 500ml• Complex handle designs or irregular shapes
• Lower upfront machine cost
Choose ISBM (Injection Stretch Blow Molding) if you need:
• Crystal-clear PET bottles for liquid medicines• High tensile strength for pressurized containers
• Large production volumes with consistent quality
For most pharmaceutical manufacturers producing small bottles, the injection blow molding machine delivers the best combination of precision, compliance, and efficiency.
GMP compliance and CE certification — what pharma standards must your machine meet?
Pharmaceutical packaging is one of the most regulated industries in the world. Your blow injection molding machine must meet specific international standards before it enters your production line.Key certifications to look for:
• CE Certification — confirms the machine meets European safety and environmental standards
• GMP Compatibility — Good Manufacturing Practice ensures the machine supports contamination-free production
• ISO Standards — verifies consistent quality management in the manufacturing process
• FDA-Compatible Materials — all machine parts that contact plastic must use approved materials
A CE-certified IBM machine from a reputable blow molding machine manufacturer ensures you can pass regulatory inspections and export pharmaceutical products to Europe, the US, and other regulated markets. Always ask your supplier for documentation before purchasing.

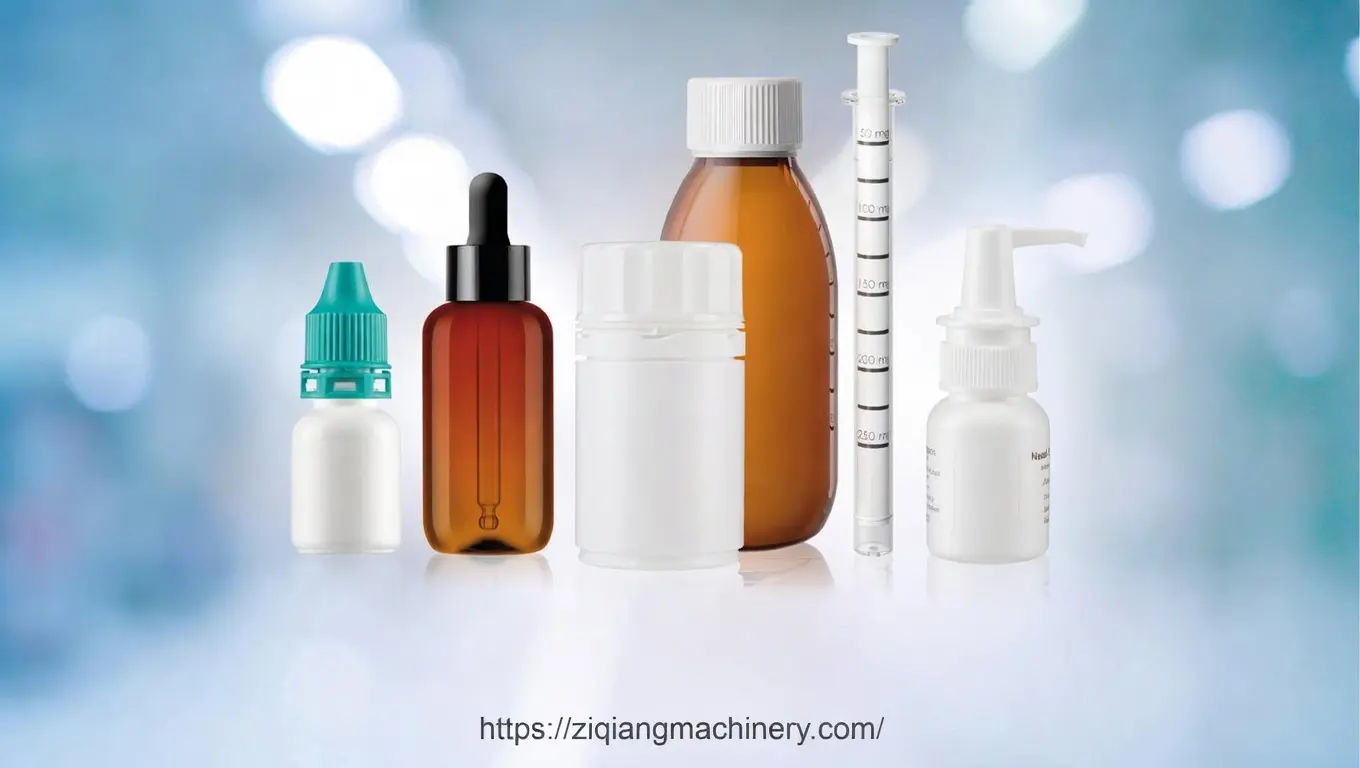

Bottle size and volume capacity — how to match the machine to your production needs
| Bottle Volume | Recommended Machine | Typical Application |
| 1ml – 50ml | IBM ZQ40 / ZQ60 | Eye drops, nasal sprays, sample bottles |
| 50ml – 200ml | IBM ZQ80 | Oral syrups, antiseptics, vitamins |
| 200ml – 500ml | IBM ZQ110 | Shampoos, disinfectants, liquid medicines |
| 500ml+ | IBM ZQ135 / EBM | Large pharma & household containers |
Always calculate your required output in bottles per hour before selecting a plastic bottles blow molding machine. Match the machine capacity to your daily production targets — not just your current needs, but your growth plans for the next 3–5 years.
Hydraulic vs servo vs full electric — which drive system is right for pharmaceutical production?
The drive system is the engine of your blow injection molding machine. It determines energy consumption, precision, noise level, and maintenance cost.| Drive System | Energy Use | Precision | Maintenance | Best For |
| Hydraulic | High | Standard | Higher | Heavy-duty, large volumes |
| Servo | Medium | High | Medium | Balanced performance & cost |
| Full Electric | Low (save 30–60%) | Highest | Low | Pharma clean rooms |
For pharmaceutical bottle production, the full electric IBM machine — also called the full electric blowing machine — is the top recommendation. It delivers oil-free operation (critical for clean room compliance), the highest repeatability, and the lowest energy costs. Ziqiang's ZQ Series full electric machines can reduce power consumption by 30–60% compared to hydraulic models.
Why oil-free and clean-room compatible machines are essential for pharma bottle production
Pharmaceutical production demands the highest level of cleanliness. Any oil contamination in your bottle production line can render an entire batch unusable — or worse, harm patients.Here is why oil-free machines are non-negotiable in pharma:
• Hydraulic machines use oil-based systems that can leak and contaminate products
• Full electric IBM machines operate without hydraulic oil — zero contamination risk
• Oil-free production meets ISO Class 7 and Class 8 clean room requirements
• Regulators in the EU, US, and Asia increasingly require oil-free production for pharma packaging
When selecting a blow injection moulding machine for pharmaceutical use, always confirm with your supplier that the machine is compatible with clean room environments and uses oil-free drive technology.

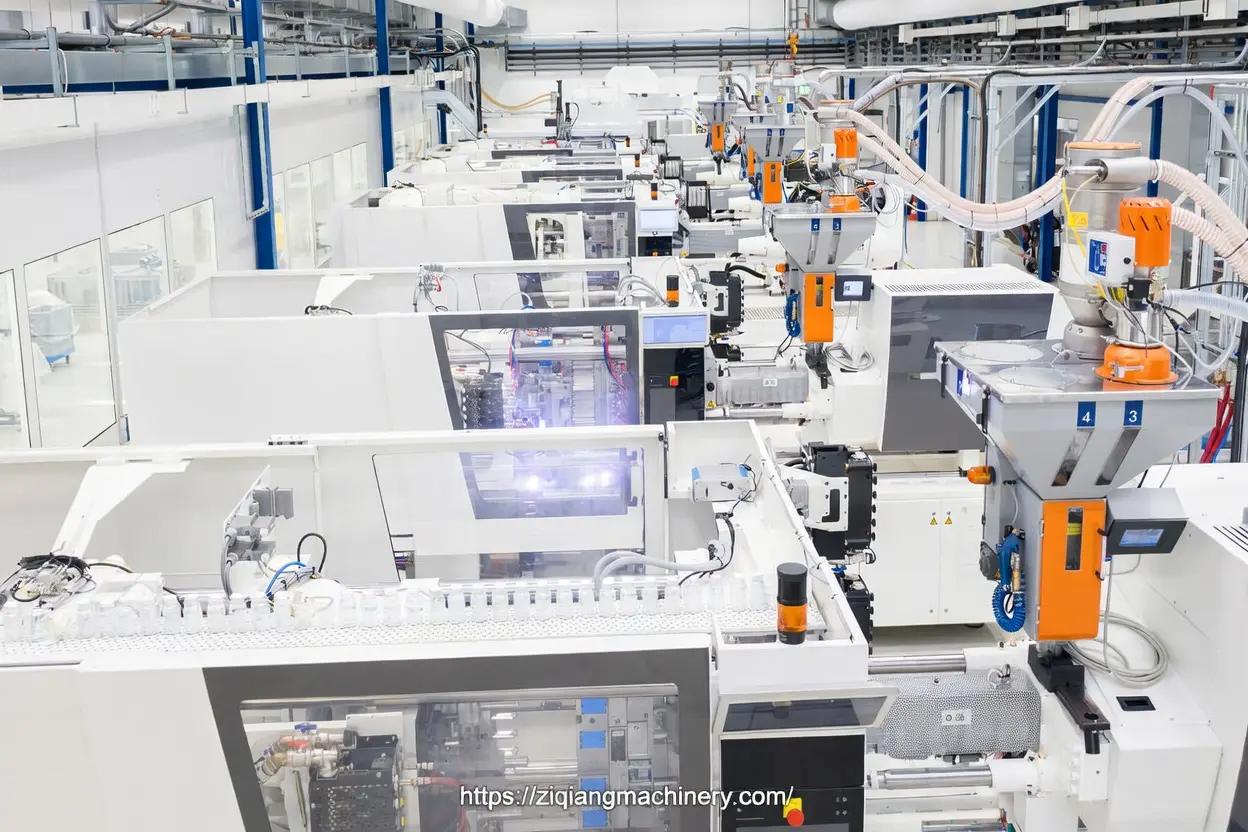

Production speed and output rate — how many bottles per hour does a pharma IBM machine produce?
Output speed varies by machine model, bottle size, and material. Here are typical production rates for a pharmaceutical blow injection molding machine:• IBM ZQ40: 1,000–3,000 bottles/hour (small bottles, 5–100ml)
• IBM ZQ60: 2,000–5,000 bottles/hour (eye drops, oral liquids)
• IBM ZQ80: 3,000–7,000 bottles/hour (100–250ml range)
• IBM ZQ110: 5,000–10,000 bottles/hour (250–500ml range)
• IBM ZQ135: up to 15,000+ bottles/hour (large volume production)
These figures depend on cavity count and cycle time. A multi-cavity injection blow molding machine will produce significantly more bottles per hour than a single-cavity model. Always ask your supplier for a cycle time guarantee in writing.
HDPE, PP, and PET — which plastic material is best for pharmaceutical bottles?
Your choice of plastic material affects bottle clarity, chemical resistance, weight, and regulatory compliance. Here is a quick guide:| Material | Properties | Common Pharma Use | IBM Compatible? |
| HDPE | Opaque, chemical resistant, lightweight | Tablets, capsules, liquid medicine | Yes |
| PP | Semi-transparent, heat resistant, rigid | Eye drops, syrups, nasal sprays | Yes |
| PET | High clarity, strong, lightweight | Oral liquids, vitamins (ISBM preferred) | Limited |
| LDPE | Soft, squeezable, flexible | Dropper bottles, squeeze packs | Yes |
Eye drop bottles, syrup bottles, and tablet containers — which IBM machine fits each application?
Different pharmaceutical products require different bottle types. Here is how to match the blow injection molding machine to your specific application:Eye drop bottles (5–15ml)
Require ultra-precise neck finishes and dropper compatibility. The IBM ZQ40 or ZQ60 is ideal — it produces small bottles with consistent wall thickness and tight dimensional tolerances.Oral syrup bottles (100–250ml)
Need accurate volume capacity and a wide neck for spoon measurement. The IBM ZQ80 handles this size range efficiently in PP or HDPE.Tablet and capsule containers (50–200ml)
Require sturdy walls, child-resistant cap threads, and dry barrier properties. HDPE bottles produced on the IBM ZQ60–ZQ110 series meet these requirements.Nasal spray and inhaler bottles
Demand precise neck geometry for pump compatibility. The IBM ZQ40 produces these small, high-precision bottles with excellent repeatability.Mold design for pharmaceutical bottles — what to check before buying a blow injection machine
The mold is as important as the machine itself. A poor mold design will produce defective bottles no matter how good your IBM machine is.Key mold factors to verify before purchasing:
• Cavity count — more cavities mean higher output but require more precise tooling
• Mold material — steel grade must match your production volume and material type
• Cooling system — efficient cooling directly affects cycle time and bottle quality
• Neck finish precision — critical for cap sealing and dropper fitment in pharma
• Mold compatibility — confirm the mold fits the exact machine model you are buying
Ziqiang Machinery supplies complete mold solutions alongside their blow injection molding machines, ensuring perfect compatibility between machine and tooling. Request a mold drawing review before production begins.

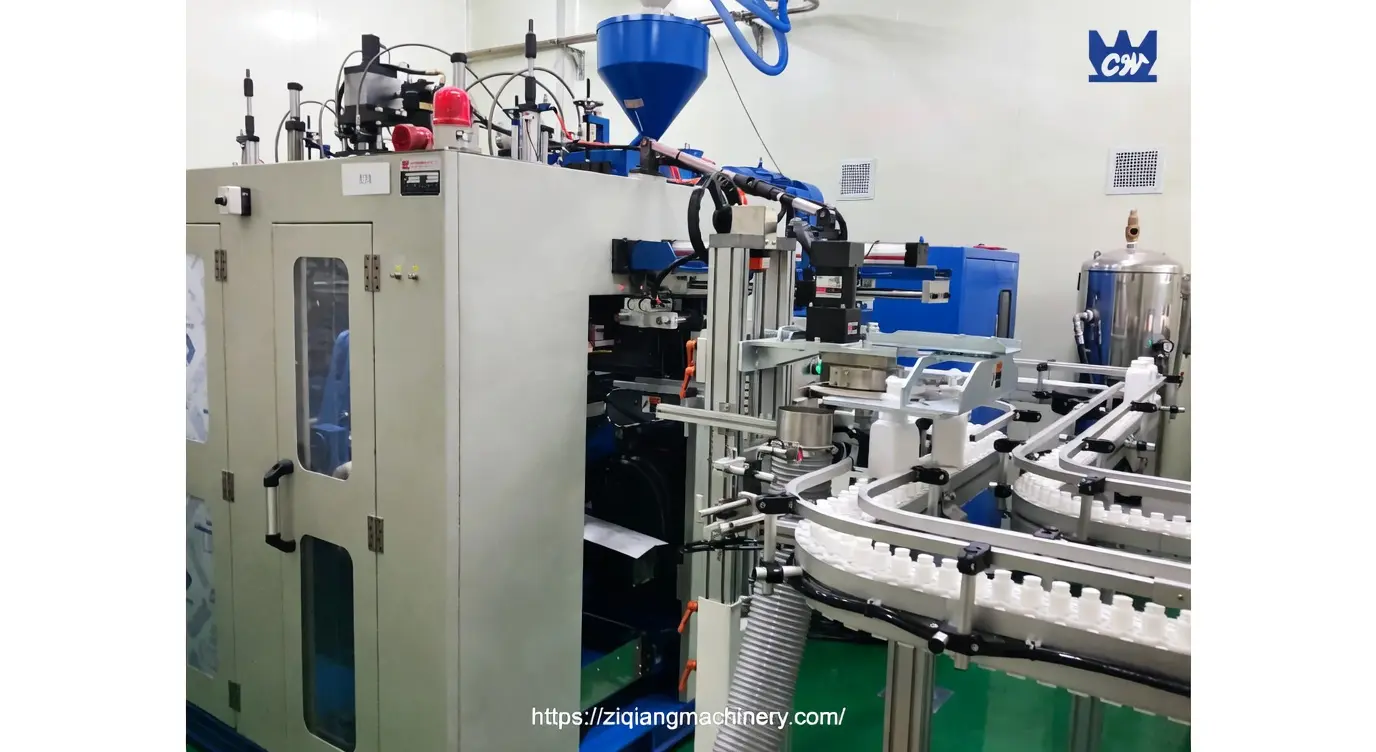

How much does a pharmaceutical blow injection molding machine cost? — 2025 price guide
Machine price depends on model size, drive system, and supplier. Here is a general 2025 price range for blow injection molding machines from Chinese manufacturers:| Machine Model | Drive System | Estimated Price Range (USD) |
| IBM ZQ40 | Servo / Full Electric | $15,000 – $35,000 |
| IBM ZQ60 | Servo / Full Electric | $25,000 – $55,000 |
| IBM ZQ80 | Hydraulic / Servo | $35,000 – $75,000 |
| IBM ZQ110 | Hydraulic / Servo | $55,000 – $110,000 |
| IBM ZQ135 | Hydraulic / Servo | $80,000 – $160,000 |
These prices are indicative. Final pricing depends on cavity count, mold configuration, destination country, and after-sales support package. Always request a detailed quotation from the blow molding machine supplier that includes installation, training, and spare parts.
5 key questions to ask your blow injection molding machine supplier before purchasing
Before signing any purchase agreement for a blow injection moulding machine, ask your supplier these five questions:• Do you have CE certification and GMP-compatible machine designs? — Non-certified machines can fail regulatory inspections.
• What is the machine warranty and what does it cover? — Look for at least 12 months warranty on core components.
• Can you provide reference customers in the pharmaceutical industry? — Proven pharma experience is essential.
• What is your after-sales support process? — Remote support, spare parts availability, and on-site engineers matter.
• Can you customize the machine for my specific bottle design? — Flexible customization ensures the machine matches your production exactly.
A reputable blow molding machine manufacturer will answer all five questions confidently and provide supporting documentation.
Why buy a pharmaceutical blow injection molding machine from China? — quality, price & reliability
China is the world's largest manufacturer of injection blow molding machines. Chinese IBM machine manufacturers supply pharmaceutical packaging companies in over 100 countries. Here is why global buyers choose China:• Price advantage — Chinese machines cost 30–60% less than European or American equivalents with comparable quality
• Advanced technology — Leading Chinese blow moulding machine manufacturers now produce full electric, servo-driven machines that rival European brands
• CE certification — Reputable Chinese suppliers carry CE and ISO certifications accepted globally
• Fast delivery — Most standard models ship within 30–60 days
• Full support — Remote technical support, English-speaking teams, and global spare parts supply chains
When choosing a blow molding machine supplier from China, always verify: CE certification, factory audit availability, reference customer list, and after-sales support quality.
Ziqiang ZQ series — the recommended blow injection molding machine for pharmaceutical bottle production
Zhangjiagang Ziqiang Machinery Co., Ltd. is a dedicated injection blow molding machine manufacturer with 20+ years of experience supplying pharmaceutical, cosmetic, food, and eye drop packaging companies in 30+ countries worldwide.Why choose Ziqiang for pharmaceutical bottle production:
• CE certified — All ZQ series machines carry CE certification
• Full electric & servo options — Oil-free, clean room compatible full electric IBM machines for pharma compliance
• Complete ZQ product range — ZQ40, ZQ60, ZQ80, ZQ110, ZQ135 models for all bottle sizes
• Custom mold solutions — Turnkey blow injection molding machine with matched mold tooling
• 30+ countries served — Proven global track record in pharmaceutical packaging
• Factory direct pricing — No middlemen, competitive PE blowing machine and IBM machine pricing
Whether you need a compact IBM ZQ40 for eye drop bottles or a high-output IBM ZQ135 for large-scale pharmaceutical production, Ziqiang delivers the precision, compliance, and reliability your business demands.
Contact Ziqiang Machinery today for a free consultation and custom quotation.
