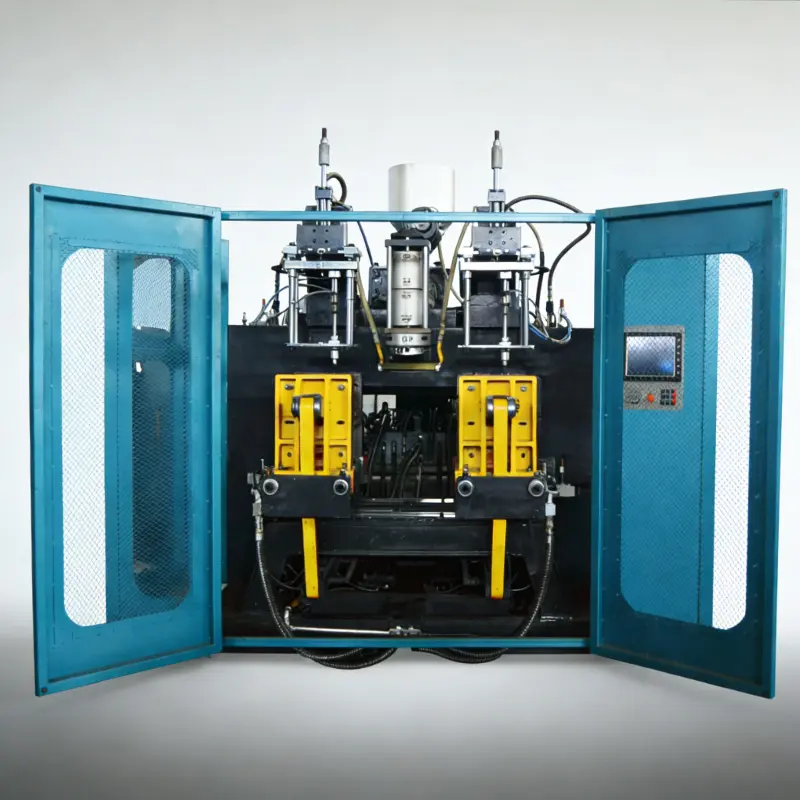

ZQG70D Fully Automatic Extrusion Blow Molding Machine（Double Station）

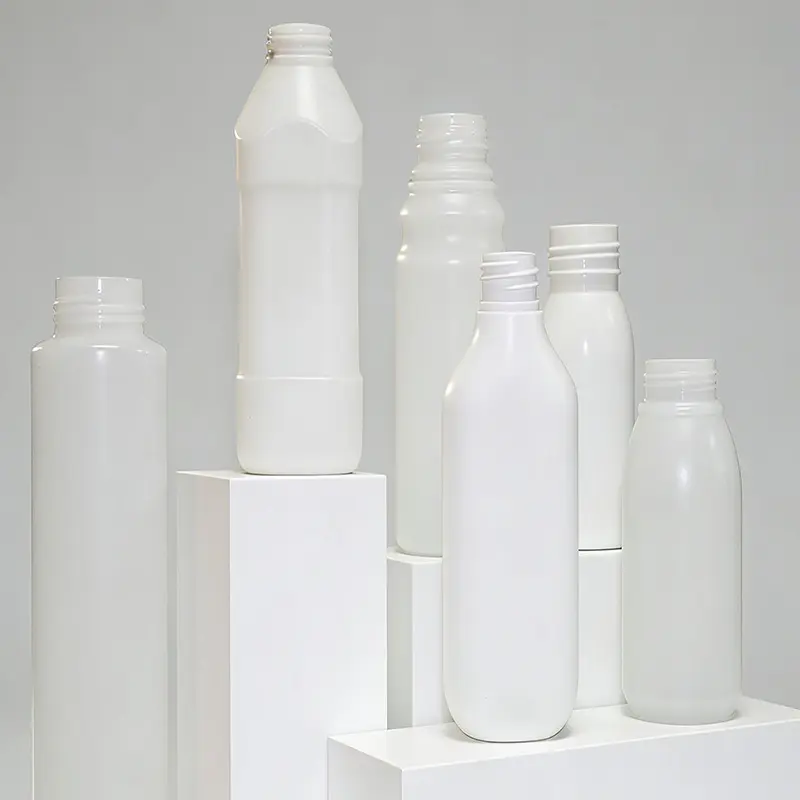

The double-station Extrusion Blow Moulding Machine is a high-efficiency equipment integrating extrusion, blowing and cooling. Its two stations work alternately to realize uninterrupted production of hollow products, covering application scenarios from small-dose medical bottles to large-volume chemical containers. It supports multi-layer co-extrusion molding, and the intelligent PLC system simplifies operation procedures, which is suitable for large-scale automated production lines.Capable of producing products for various applications, and applicable to all industries.
| Max. Product Volume | （L） | 6 |
| Theoretical Output | （PC/h） | 600×2 |
| Screw Diameter | （mm） | 70 |
| Screw L/D ratio | （L/D） | 22-30 |
| Screw drive power | （KW） | 18.5-30 |
| Screw heating capacity | （KW） | 12-16 |
| Output of HDPE | （kg/h） | 70-105 |
| Oil pump drive power(with servo) | （KW） | 11 |
| Clamping force | （KN） | 90 |
| Platen size | （W×H）mm | 370×450 |
| Platen Moving Stroke | （mm） | 440 |
| Platen Opening Stroke | （mm） | 180-530 |
| Max. Die diameter | （mm） | 150 |
| Central distance of bi-die | （mm） | 150-200 |
| Central distance of three-die | （mm） | 80-120 |
| Central distance of four-die | （mm） | 60-85 |
| Central distance of six-die | （mm） | 60 |
| Blowing pressure | （Mpa） | 0.6-0.8 |
| Air Consumption | （M³/H） | 56 |
| Cooling water pressure | （Mpa） | 0.3 |
| Water consumption | （L/MIN） | 90 |
| Size of machine | （L×W×H）/m | 3.6×2.6×2.5 |
| Weight of machine | （TON） | 10.5 |
