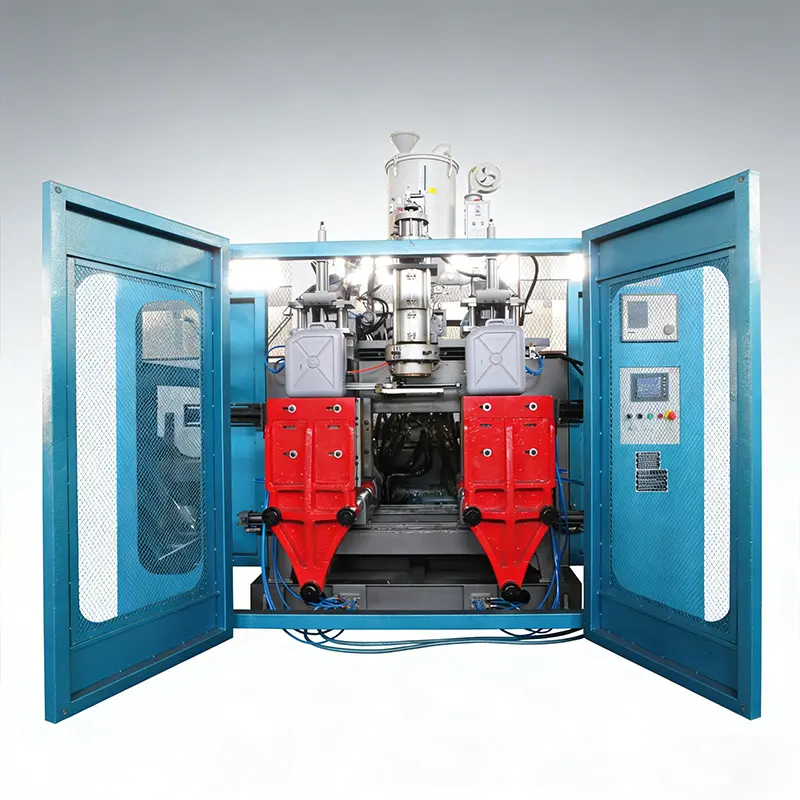

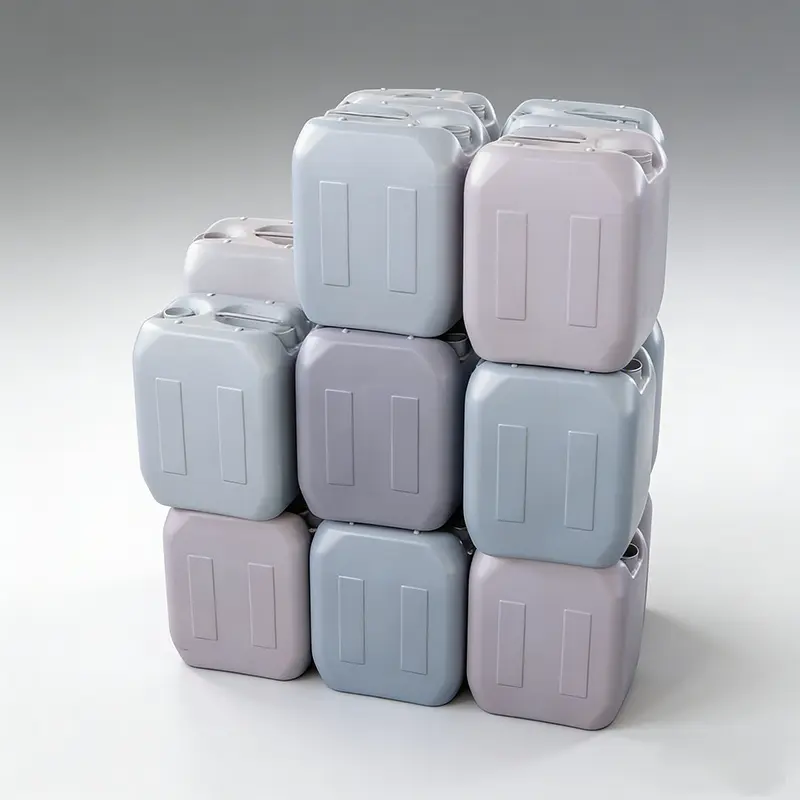

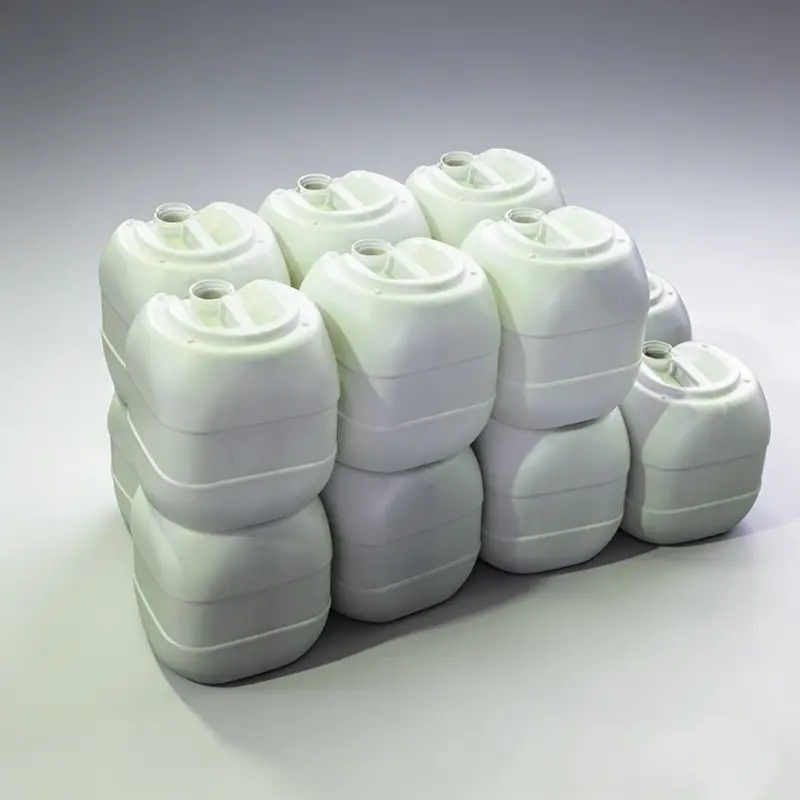

Featuring advanced servo control technology, our double-station Extrusion Blow Moulding Machine realizes high-precision regulation of parison thickness, temperature and air pressure. The dual-station continuous operation mode effectively reduces idle time, increases production capacity by 50% compared with single-station models, and is equipped with automatic deflashing and leak testing functions to minimize material waste and improve product qualification rate.Capable of producing large-capacity chemical drums, oil drums and other such containers, and applicable to multiple industries including the chemical industry.
| Model | 80 | 90 | |
| Max.Product Volume | (L) | 12 | 20 |
| Theoretical Output | (PC/h) | 600×2 | 550×2 |
| Screw Diameter | (mm) | 80 | 90 |
| Screw L/D ratio | (L/D) | 25 | 25 |
| Screw drive power | (KW) | 37 | 45 |
| Screw heating capacity | (KW) | 16 | 20 |
| Output of HDPE | (kg/h) | 120 | 150 |
| Oil pump drive power | (KW) | 11-18.5 | 15-22 |
| Clamping force | (KN) | 125 | 200 |
| Platen size | (W×H)mm | 550×600 | 600×660 |
| Platen Opening Stroke | (mm) | 220-570 | 330-730 |
| Max.Die Diameter | (mm) | 200 | 230 |
| Die heat capacity | (kw) | 4.5-7.0 | 6.5 |
| Average Energy Consumption | (kw/h) | 24.5 | 27.5 |
| Blowing pressure | (Mpa) | 0.6 | 0.6 |
| Air Consumpton | (M³/MIN) | 1.0 | 1.1 |
| Cooling water pressure | (Mpa) | 0.3 | 0.3 |
| Water consumption | (L/MIN) | 90 | 100 |
| Size of machine | (L×W×H)/m | 4.0×2.6×3.0 | 4.2×2.8×3.2 |
| Weight of machine | (TON) | 12.5 | 14.5 |
