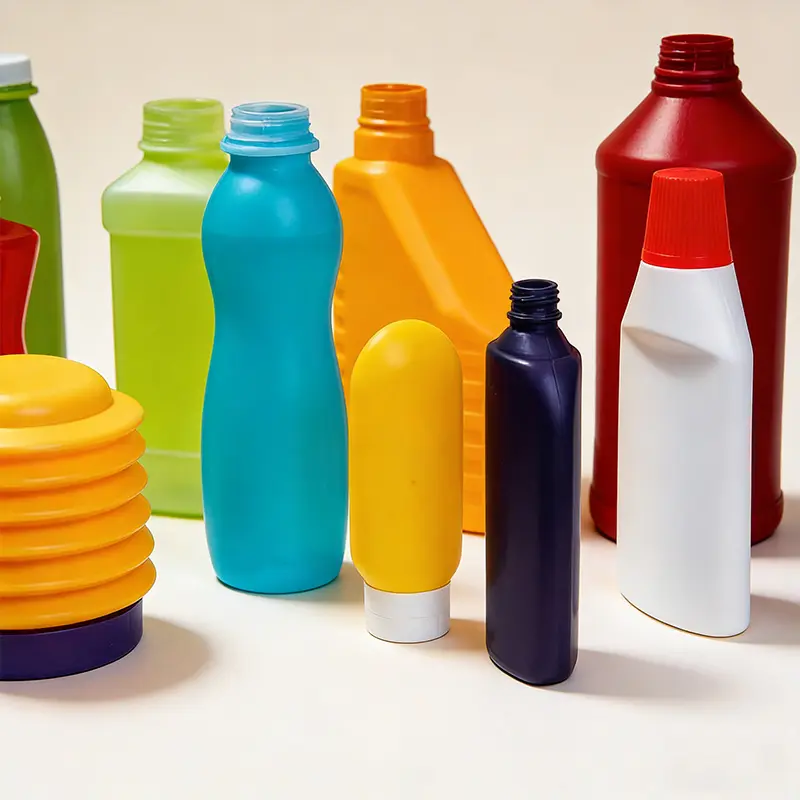

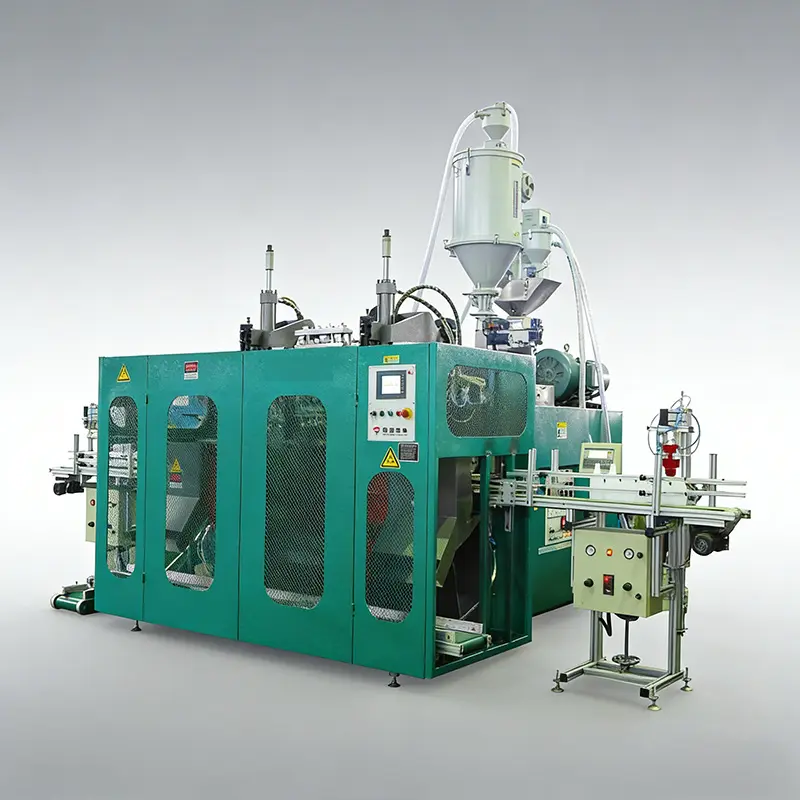

Engineered for high-output hollow plastic product manufacturing, the double-station Extrusion Blow Moulding Machine adopts dual-station mold clamping design to realize seamless switching between parison extrusion and product molding. It is compatible with a variety of polymer materials, supports multi-layer co-extrusion technology, and can produce small cosmetic bottles, food containers and large industrial packaging containers, with strong versatility to meet diverse market demands.Suitable for the production of food and daily chemical products, and applicable to multiple industries.
| Max.Product Volume | (L) | 6 |
| Theoretical Output | (PC/h) | 700×2 |
| Screw Diameter | (mm) | 70 |
| Screw L/D ratio | (LD) | 24-30 |
| Screw drive power | (KW) | 18.5-30 |
| Screw heating capacity | (KW) | 12-14.5 |
| Output of HDPE | (kg/h) | 70-95 |
| Oil pump dive power | (KW) | 5.5-7.5 |
| Clamping force | (KN) | 70 |
| Platen size | (W×H)mm | 368×430 |
| Platen Opening Stroke | (mm) | 178~538 |
| Max.Die diameter | (mm) | 150 |
| Central distance of bi-die | (mm) | 150-200 |
| Max.Die Diameter(Bi-die) | (mm) | 100 |
| Central distance of three-die | (mm) | 110-140 |
| Max.Die Diameter(three-die) | (mm) | 70 |
| Central distance of four-die | (mm) | 70-100 |
| Max.Die Diameter(four-die) | (mm) | 45 |
| Average Energy Consumption | (kw/h) | 18.5 |
| Blowing pressure | (Mpa) | 0.6 |
| Air Consumption | (M³MIN) | 0.4 |
| Cooling water pressure | (Mpa) | 0.3 |
| Water consumption | (LMIN) | 70 |
| Size of machine | (L×W×H)/m | 3.5×2.1×2.6 |
| Weight of machine | (TON) | 8.0 |
