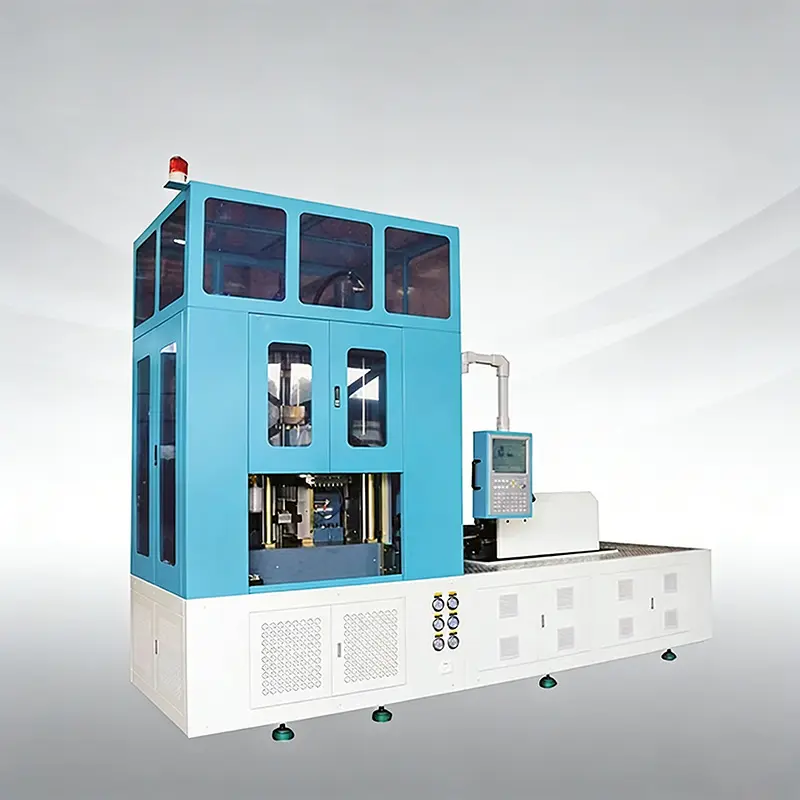

One Step Injection Stretch Blow Molding Machine

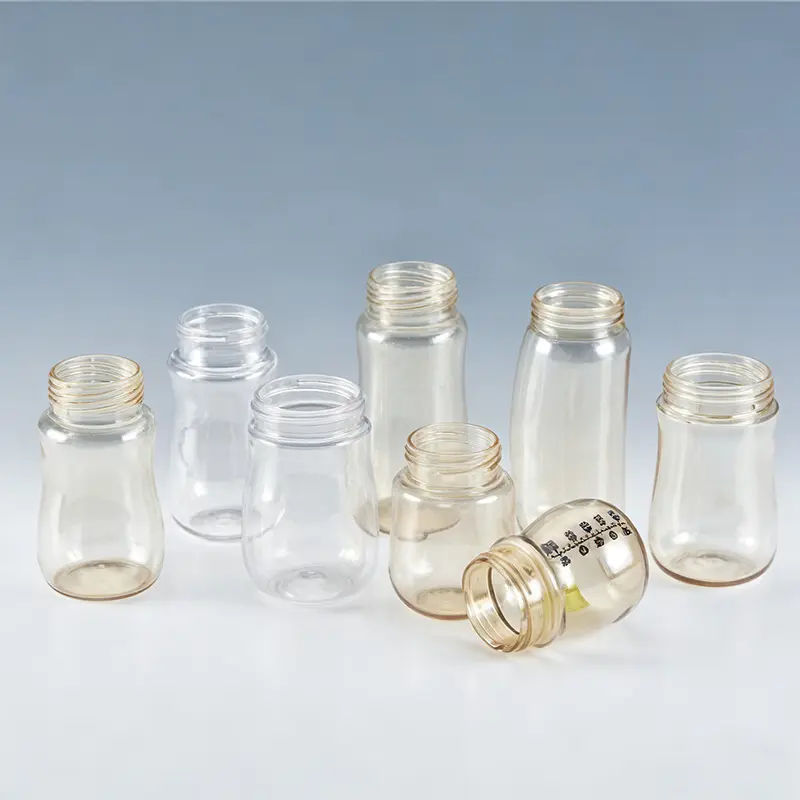

The one step blow molding machine is a new production equipment created by ZI-QIANG Machinery which pursues high quality requirements, which can produce medicine bottles, cosmetic bottles,baby bottles, water bottles, special shaped bottles, etc.. It is suitable for products with high requirements for special shaped appearance and no hand contact during the production, which meets the GMP.

Model Unit ZQY50-V3 （HI bit） This model is an all-electric high-speed machine ZQY50-V3-EV (3 stations) This model is compatible with Aoki Gu 100 molds This model is compatible with ASB-12M mold ZQY150-V4 (4 stations) This model is compatible with ASB-70DPH mold ZQY250-V4 (4 stations)
ZQY150-V 3（3 stations）
Container   Cavity No. 1         2        3        4        5        6 1         2        3        4        5        6 1      2      3 4      5      6 1      2      3      4      5      6      7      8 1          2          3          4          5          6          7          8          9           10           12
Max. Diameter mm 100      90      64       45      35     28 100      90      64       45      35     28 105   105    72 46     35     25 118    80    66    56    54    45    28     26 204         153         130       120        99        79          68          53         53        45        37
Max. Height mm 200   200   200   200   200   200 200   200   200   200   200   200 250 250 250 250 250 250 250 250 250 250 250 250 150 150 350        350        350        350      350      350        250        250        250        250        250
Max. Neck Diameter mm 60       38      30      27      20      17 60       38      30      27      20      17 80    60    35 25    20    15 83    62    48    38    32    25    17    15 158          120           111        95        77          60          42       36        34          27        18
Max. Weight g 105     50      35      28      22      18 105     50      35      28      22      18 200   140   90 70    55    45 130   65    43    32    26    22    18    16 311/500     155/280   105/180   80/130   65/110     55/90     45/75     40/65     35/60      30/55     25/45
Max. Capacity L 2.5    1.5   0.6     0.25     0.15   0.1 2.5    1.5   0.6     0.25     0.15   0.1 2.5   1.5    0.9 0.4   0.25   0.1 2.5 1.5 0.9 0.4 0.25 0.1 0.03 0.02 10           4.5           3.5           3         1.8        1         0.6          0.4           0.35         0.25      0.1
Screw Diameter mm 40 40 50 50 64
Injection device  Theoretical Injection Capacity g 188 183 315 315 785
Injection Stroke mm 135 160 172 172 260
Injection Pressure MPa 160 210 174 174 173
Saew Speed RPM 0-240 0-240 0-240 0-240 0-240
 Injection Clamping Force KN 50 50 150 150 200
In^^on  Upper Mould Stroke mm 250 250 460 250 350
Lower Mould Stroke mm 250 250 250 205 250
Temperature control  Temperature Regulating Core Stroke mm       250 250
Temperature Regulating Barrel Stroke mm       230 250
Blow Gamping Force KN 70 70 120 120 200
^<58 Blow Core Stroke mm 200 200 250 250 250
Blow Moulding Stroke mm 50+50 50+50 125 75+75 150+150
Off-moulding  Take-out Stroke mm 170 170 170 170 190
  Oil lank Capacity L 150   300 300 600
Machine specifications Size （L*W*H） mm 2500*1100*2450 3800*1200*2600 4200*1400*2800 4200*1400*2800 6200*2200*3800
Machine Weight kg 3000 3000 6000 6000 9000
