Introduction
Sourcing the right one step injection stretch blow molding machine is one of the biggest decisions a bottle producer or brand owner will make this year. The equipment you choose affects production cost, bottle quality, and how quickly you can scale output. This guide explains how one step ISBM technology works, how it compares to two step systems, and what to look for when evaluating a manufacturer in China.Ziqiang Machinery, based in Zhangjiagang, Jiangsu Province, has spent more than 20 years designing injection blow molding machinery for pharmaceutical, cosmetic, food, and personal care packaging. Whether you are an importer comparing suppliers, a procurement manager preparing a technical specification, or a brand owner planning a new product line, this article gives you the practical information you need before sending an inquiry.
What Is a One Step Injection Stretch Blow Molding Machine?
A one step injection stretch blow molding machine combines preform injection, stretching, and blow molding into a single piece of equipment. Instead of producing preforms in one factory and shipping them elsewhere for reheating and blowing, the entire process happens on one rotary platform.This is different from standard injection blow molding or extrusion blow molding machine setups, which may separate these functions or use a parison rather than a stretched preform. Because the preform never fully cools before stretching, the resulting bottles typically show fewer visual defects, tighter wall-thickness tolerance, and better clarity — properties that matter most for pharmaceutical, cosmetic, and food-grade containers. Ziqiang's Injection Stretch Blow Moulding Machine range is built specifically around this one-step process.

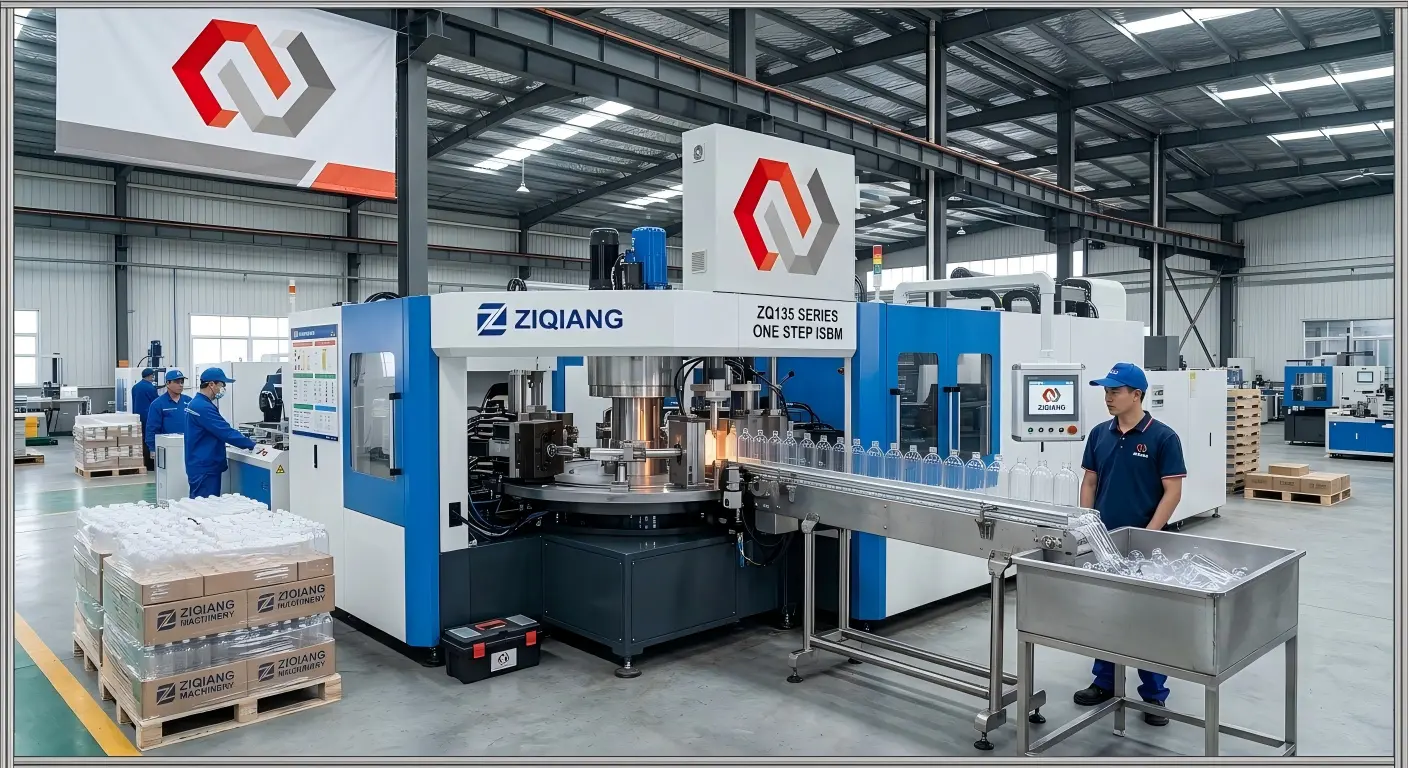

How One Step Injection Stretch Blow Molding Works: Preform, Stretch, Blow
The process runs through three connected stations on a rotating platen:
• Injection station — melted resin is injected into a cavity to form the preform, with the neck finish set to final dimensions.
• Stretch-blow station — the still-warm preform rotates into position, where a stretch rod elongates it and compressed air blows it against the mold wall.
• Ejection station — the finished bottle is released and the mold resets for the next cycle.
Because heating happens only once, this injection and blow molding sequence uses less energy than processes that require a separate reheating step, and it keeps cycle times predictable for high-volume runs.
One Step vs Two Step Injection Stretch Blow Molding Machine: Key Differences
Buyers often ask whether a one step or two step injection stretch blow molding machine is the better fit. The answer depends on order volume, bottle complexity, and available floor space.| Factor | One Step ISBM Machine | Two Step ISBM Machine |
| Process | Preform, stretch, and blow in one machine | Preforms made separately, then reheated and blown |
| Best for | Small to mid-size batches, complex or custom shapes | Very large volumes of standardized bottles |
| Floor space | Compact, single footprint | Requires separate preform and blowing equipment |
| Changeover | Faster mold and product changes | More setup time between product runs |
| Energy use | No reheating stage; generally lower energy per bottle | Additional reheating stage adds energy cost |
| Typical buyers | Pharma, cosmetic, and specialty bottle producers | High-volume beverage and commodity bottle producers |
Why Choose Ziqiang as Your China One Step ISBM Machine Manufacturer
Buyers evaluating a China Injection Blow Molding Machine Manufacturer typically look past price and check technical support, build quality, and communication. Ziqiang Machinery has worked with customers across more than 30 countries, and the company's engineering team is directly involved in machine design rather than outsourcing R&D.Reasons buyers choose to work with Ziqiang:
• Direct factory pricing with no trading-company markup
• A dedicated product line built specifically around injection stretch blow molding machine technology
• Support for full-electric, servo, and hydraulic drive configurations depending on your budget and output needs
• Technical staff who can review your bottle drawing before you commit to an order
Technical Specifications of Ziqiang One Step Injection Stretch Blow Molding Machines
Ziqiang's ISBM machines are built around PID-controlled barrel and hot-runner heating, servo-driven wheel rotation, and PLC-based automation. Machines are available in full-electric, servo-hybrid, and hydraulic configurations, so buyers can match drive type to their production budget and precision requirements.Because bottle volume, cavity count, and cycle time vary by mold and product design, Ziqiang's technical team reviews your bottle drawing and target output before confirming a final specification sheet — this avoids quoting a machine that is oversized or undersized for your actual order.
IBM ZQ Series One Step Injection Stretch Blow Molding Machine Models (ZQ40–ZQ135)
Ziqiang's IBM ZQ series covers five main platform sizes — ZQ40, ZQ60, ZQ80, ZQ110, and ZQ135 — scaled to different bottle sizes and output requirements. Smaller platforms in the series are suited to compact containers such as eye-drop and small pharmaceutical bottles, while larger platforms handle bigger cosmetic and household packaging.Each model can be configured with different cavity counts and mold designs, so the right platform depends on your target bottle volume and expected monthly output rather than the model number alone.
Applications: Pharmaceutical, Cosmetic, Food & Eye Drop Bottle Production
One step ISBM machines are widely used across:• Pharmaceutical packaging — eye-drop bottles, syrup bottles, and tablet containers that need consistent neck dimensions
• Cosmetic packaging — lotion, serum, and cream bottles where clarity and surface finish matter
• Food packaging — small condiment and sauce containers made from food-grade resins
• Health care and personal care packaging — trial-size and travel bottles
This range of use cases is why many buyers researching Application options for their product line start with ISBM before comparing it against extrusion blow molding.

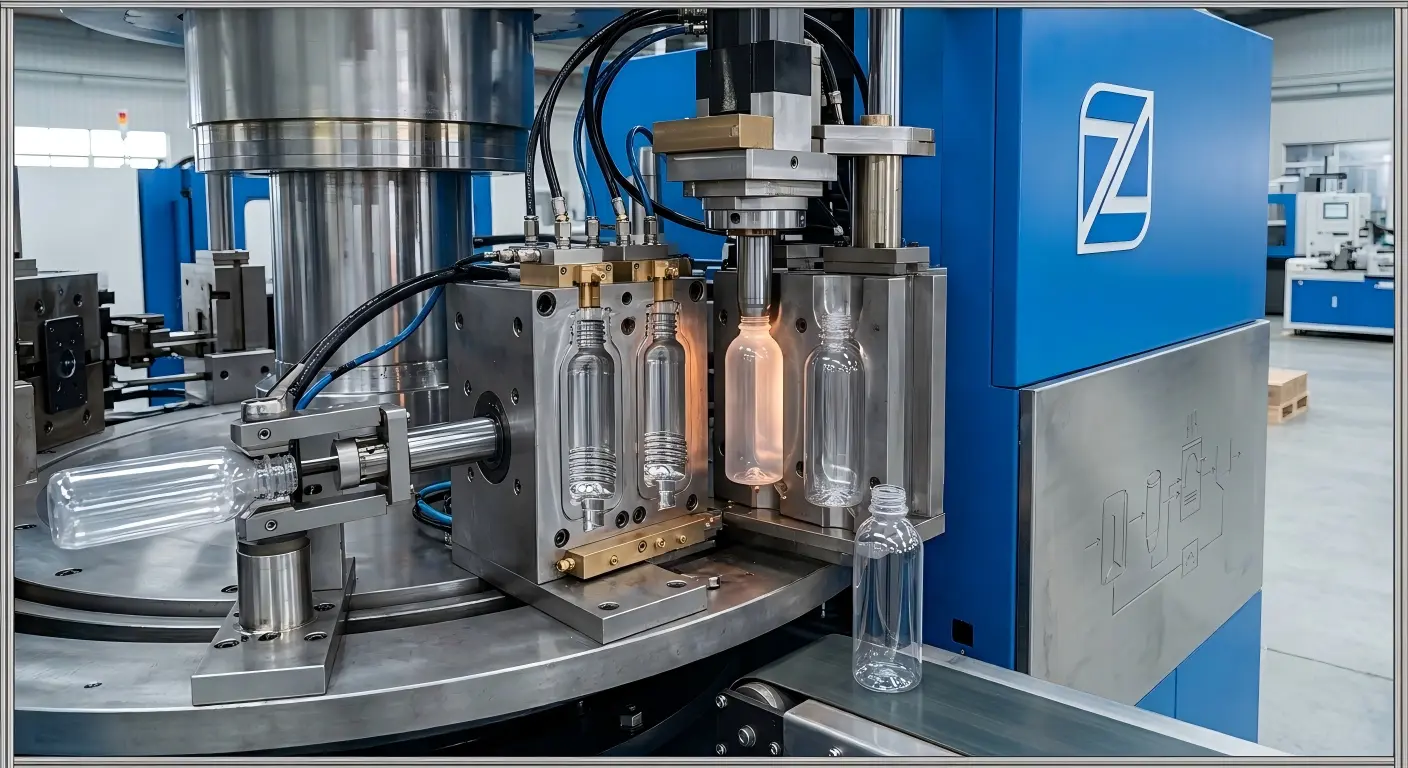

Materials Supported: PET, PP, PS, HDPE, PCTG and More
Ziqiang's one step ISBM machines are designed to process a range of thermoplastics, including HDPE, LDPE, PP, PS, ABS, PCTG, and EVA, along with PET where clarity is the priority. Material choice affects barrier properties, transparency, and chemical resistance, so it's worth confirming your intended resin early — some materials require adjustments to barrel temperature and hot-runner settings that your supplier should account for in the initial quotation.
Benefits of One Step Injection Stretch Blow Molding vs Traditional Blow Molding
Compared with a standard blow molding machine or extrusion blow molding machine, one step ISBM offers:• No flash, sprue, or trimming waste to manage
• Thinner, more uniform wall thickness using less raw material
• No reheating step, which shortens the overall process
• Reduced handling between stations, which lowers contamination risk for food and pharma-grade containers
• A smaller equipment footprint compared with running separate preform and blowing lines
Energy Savings & Servo-Driven Efficiency of Ziqiang's ISBM Machines
Ziqiang's platen rotation is driven by servo motors rather than hydraulic pumps running continuously, which reduces idle power draw. Combined with PID-controlled heating that holds barrel and hot-runner temperature within a tight range, this reduces energy waste from temperature overshoot.For buyers comparing a full electric IBM machine against a hydraulic model, the main trade-off is upfront cost versus long-term power savings — full-electric machines typically cost more initially but reduce electricity consumption over the life of the equipment.
Small Bottle Manufacturing: 1ml to 1000ml Capacity Range
Ziqiang's ISBM and IBM platforms are built to handle bottle volumes from 1ml up to 1000ml, covering everything from single-dose pharmaceutical vials to standard cosmetic and food containers. This range is one reason pharmaceutical and cosmetic brand owners specifically look for a PE Blowing Machine or ISBM supplier rather than a general-purpose blow molding line — smaller volumes demand tighter dimensional control that not every machine platform is built for.Quality Control & Precision Molding Standards at Ziqiang Machinery
Bottle quality starts with barrel and hot-runner temperature stability. Ziqiang uses PID temperature control to maintain consistent melt conditions across long production runs, which helps reduce variation in wall thickness and neck dimensions between cycles.Servo-driven motion also reduces mechanical play compared with older hydraulic designs, supporting tighter repeatability from bottle to bottle. Buyers evaluating suppliers should ask directly about temperature control systems, cavity tooling tolerances, and how the manufacturer tests machines before shipment.
Ziqiang Machinery Factory, R&D Team & Manufacturing Capabilities
Zhangjiagang Ziqiang Machinery Co., Ltd. operates from a factory in Zhangjiagang City, Jiangsu Province — a region with a strong plastics-machinery manufacturing base and convenient port access. The company's R&D team focuses specifically on injection blow moulding machinery and matching molds, which means machine design and mold design are developed together rather than sourced from separate vendors.This integrated approach is intended to reduce compatibility issues between the machine and the mold when a new bottle project starts.
Global Export & Support: Serving 30+ Countries and Regions
Ziqiang Machinery ships to customers across North America, Europe, the Middle East, Asia-Pacific, South America, and Africa, supporting buyers in more than 30 countries and regions. For international buyers, this means the company is familiar with export documentation, container loading for large equipment, and remote technical support across different time zones.Buyers can reach the technical team directly with drawings or project requirements before placing an order.
Frequently Asked Questions About One Step Injection Stretch Blow Molding Machines
What bottle sizes can a one step injection stretch blow molding machine produce?
Depending on the platform and mold design, one step ISBM machines can typically produce bottles from about 1ml up to 1000ml or more, covering pharmaceutical, cosmetic, and small food packaging.Is a one step ISBM machine better than a two step system?
It depends on your order volume and bottle design. One step machines suit small to mid-size batches and complex shapes, while two step systems are generally more efficient for very large, standardized production runs.Which materials can be processed on a one step ISBM machine?
Common materials include PET, PP, PS, HDPE, LDPE, PCTG, ABS, and EVA, depending on the application and required clarity or barrier properties.Does Ziqiang Machinery offer full-electric machine options?
Yes. Ziqiang offers full-electric, servo, and hydraulic drive configurations, so buyers can choose based on budget and precision requirements.Can Ziqiang customize a machine and mold for a new bottle design?
Yes. Ziqiang's R&D team develops machines and molds together, so buyers with a new bottle drawing can request a technical review before confirming an order.How do I request a quotation from Ziqiang Machinery?
You can contact Ziqiang directly with your bottle drawing, target volume, and expected monthly output, and the technical team will follow up with a specification and quotation.Conclusion
Choosing the right one step injection stretch blow molding machine comes down to matching your bottle design, material, and production volume to the right platform and manufacturer. Ziqiang Machinery's combination of in-house R&D, integrated mold and machine design, and support across 30+ countries makes the evaluation process more straightforward for international buyers.If you're comparing suppliers or preparing a technical specification, share your bottle drawing and target output with Ziqiang's team — they can review your requirements and recommend the right machine configuration, provide a quotation, and discuss customization or sample options. Contact us today to get started.
