This page gives you everything you need — from understanding how a PE blowing machine works, to choosing the right model, comparing prices, and getting a factory-direct quote. Read on to make a smart, informed buying decision.

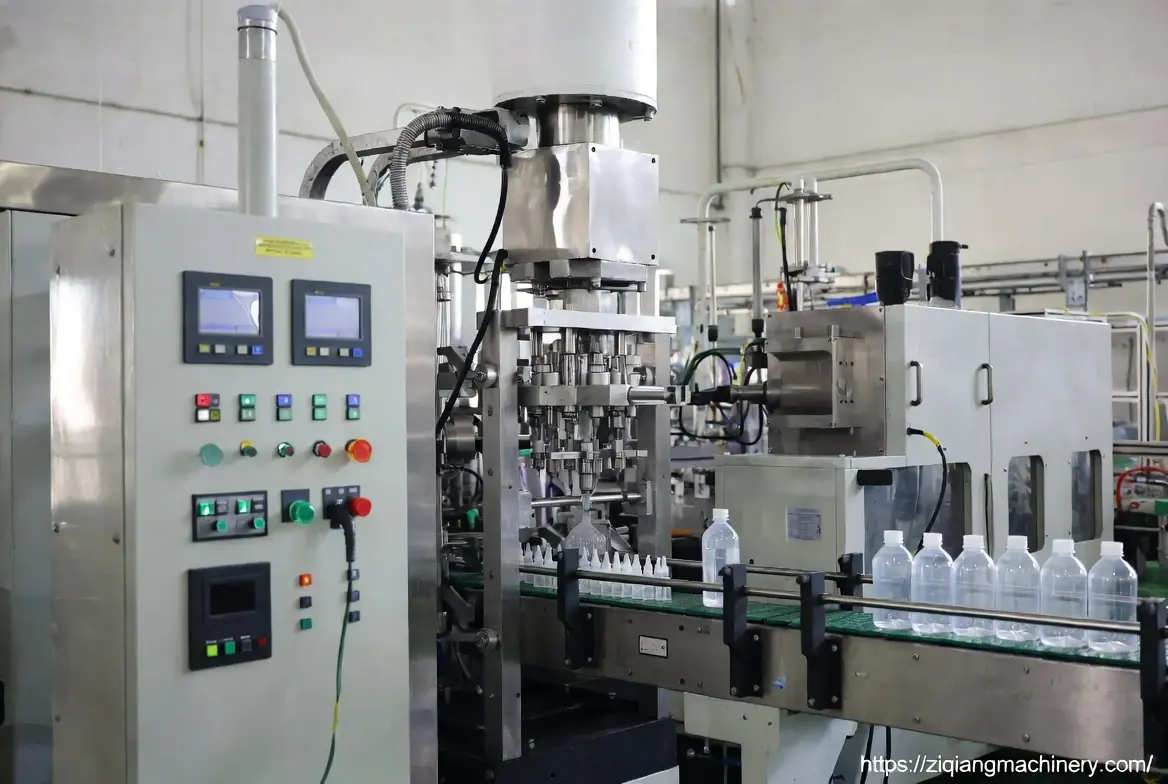

What Is a PE Blowing Machine?
A PE blowing machine is an industrial machine used to manufacture hollow plastic containers — such as bottles, jars, and canisters — from polyethylene (PE) material. The machine heats PE resin, shapes it into a preform or parison, and then uses air pressure to blow it into a mold cavity, creating the final bottle shape.PE (polyethylene) is one of the most widely used plastics in the world. Its flexibility, chemical resistance, and lightweight nature make it ideal for packaging in the pharmaceutical, cosmetic, food, and agricultural industries. A blow molding machine that processes PE material offers manufacturers a cost-effective and high-speed solution for producing these containers at scale.
Key facts about PE blowing machines:
• Process: Injection blow molding (IBM), extrusion blow molding (EBM), or injection stretch blow molding (ISBM)
• Material: HDPE, LDPE, LLDPE, and other polyethylene grades
• Output: Small bottles (5ml) to large containers (5L+)
• Applications: Medicine bottles, shampoo bottles, food jars, eye drop containers
• Automation level: Full electric, servo-driven, or hydraulic
How Does a PE Blowing Machine Work? Step-by-Step Process
Understanding the process helps you choose the right blow moulding machine for your production needs. Here is a clear, step-by-step breakdown of how a PE blowing machine operates:Step 1 – Material Feeding
PE granules or pellets are loaded into the machine's hopper. The material feeds automatically into the heated barrel.
Step 2 – Plasticization & Melting
The screw rotates inside the barrel, melting the PE material at controlled temperatures (typically 160°C–240°C depending on PE grade).
Step 3 – Injection / Extrusion

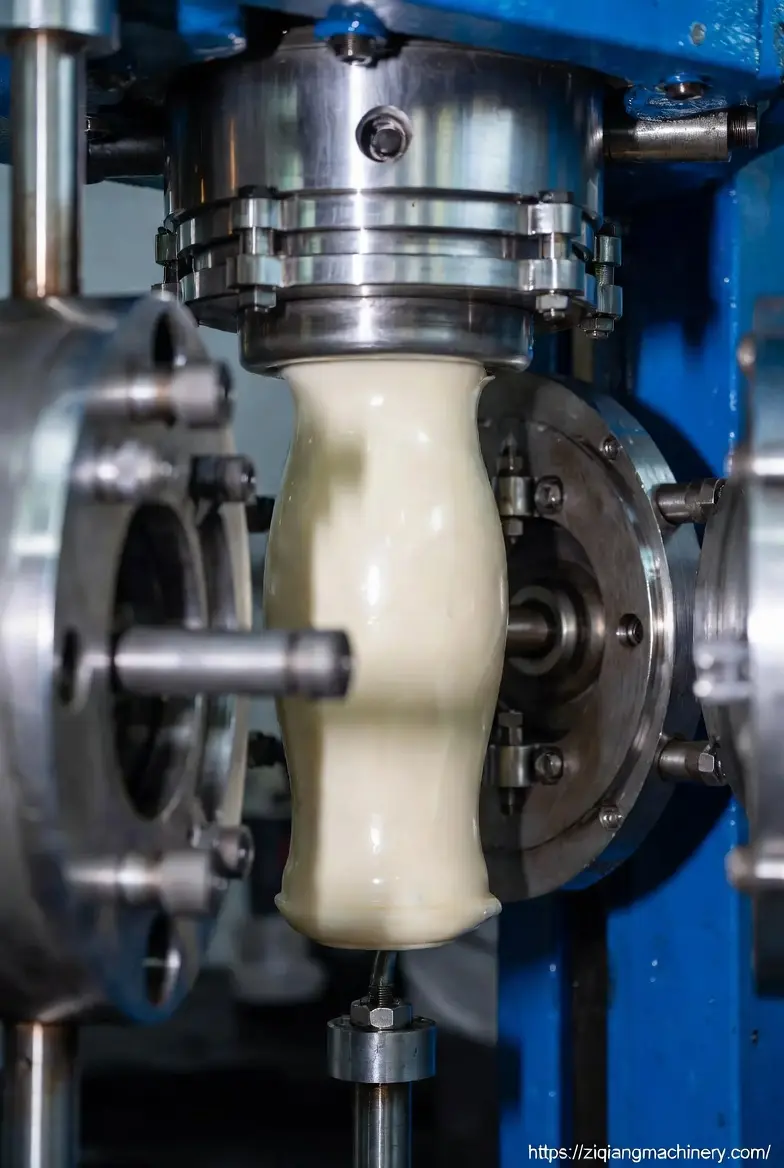

In an injection blow molding machine (IBM), molten PE is injected into a core rod to form a precise preform. In an extrusion blow molding machine (EBM), a parison (hollow tube) is extruded continuously.
Step 4 – Blow Molding
The preform or parison is transferred to the blow mold. Compressed air inflates it against the mold walls, forming the exact shape of the bottle or container.
Step 5 – Cooling & Ejection
The mold cools rapidly, solidifying the PE bottle. The mold opens and the finished product is ejected automatically onto a conveyor or collection system.
Step 6 – Quality Inspection
Automated sensors check for wall thickness, neck dimensions, and weight consistency. Ziqiang machines maintain tight tolerances for pharmaceutical-grade output.
Types of PE Blowing Machines: IBM, EBM & ISBM Explained
Not all PE blowing machines are the same. The right type depends on your bottle design, production volume, and industry requirements. Here is a clear comparison:| Machine Type | Full Name | Best For | Key Advantage |
| IBM | Injection Blow Molding Machine | Small precision bottles (5ml–500ml) | Excellent neck accuracy, no flash, clean finish |
| EBM | Extrusion Blow Molding Machine | Large containers (500ml–5L+) | High output, suitable for handles & complex shapes |
| ISBM | Injection Stretch Blow Moulding Machine | PET & PP bottles with high clarity | Biaxial orientation, superior strength & transparency |
Ziqiang Machinery manufactures all three types. For pure PE blowing machine applications — especially pharmaceutical, eye drop, and cosmetic bottles — the injection blow molding machine (IBM) is the most recommended solution due to its precision neck dimensions, flash-free output, and clean room compatibility.
Ziqiang PE Blowing Machine Specifications & Technical Details
Ziqiang offers a complete ZQ series of injection blow molding machines. Each model is engineered for specific output volumes and bottle sizes. Below are the key technical specifications:| Model | Clamping Force | Shot Weight | Bottle Volume | Power Type |
| ZQ40 | 40 kN | Up to 30g | 5ml – 50ml | Hydraulic / Servo |
| ZQ60 | 60 kN | Up to 60g | 10ml – 150ml | Hydraulic / Servo |
| ZQ80 | 80 kN | Up to 100g | 20ml – 300ml | Servo / Full Electric |
| ZQ110 | 110 kN | Up to 160g | 50ml – 500ml | Servo / Full Electric |
| ZQ135 | 135 kN | Up to 250g | 100ml – 1000ml | Full Electric (HE) |
All models are CE certified and available in hydraulic, servo, and full electric IBM machine configurations. Custom mold specifications are also available on request.
Key Features of Our PE Blow Molding Machines
Every Ziqiang PE blowing machine is built to perform under demanding production conditions. Here are the standout features that make our machines the top choice for global buyers:• High Precision Neck Dimensions: Critical for pharmaceutical bottles — ensures consistent seal with caps and closures.
• Flash-Free Production: IBM technology eliminates trimming waste, reducing labor costs and material loss.
• Energy-Saving Drive System: Servo and full electric options reduce energy consumption by 30–60% vs. traditional hydraulic machines.
• Stable Clamping System: Heavy-duty toggle mechanism provides uniform clamping force across all cavities.
• PLC Touch Screen Control: Siemens or Mitsubishi PLC with intuitive HMI for easy operation, monitoring, and parameter storage.
• Quick-Change Mold Design: Reduces downtime between production runs for different bottle sizes.
• Oil-Free Clean Operation: Full electric models produce no hydraulic oil contamination — ideal for pharmaceutical clean rooms.
• Multi-Cavity Molds: Available in 1–6 cavities for higher output per cycle.
All-Electric, Servo & Hydraulic PE Blowing Machine Options
When selecting your PE blowing machine, the drive system is one of the most important decisions. Here is how the three options compare:| Drive Type | Energy Saving | Precision | Maintenance | Best Application |
| Hydraulic | Standard | Good | Higher (oil changes) | General bottle production |
| Servo | 30–40% saving | Very Good | Moderate | Cosmetic & food bottles |
| Full Electric | 50–60% saving | Excellent | Low (no hydraulic oil) | Pharmaceutical & cleanroom |
The full electric blowing machine is Ziqiang's most advanced option. The ZQ135HE (High Efficiency) model is purpose-built for pharmaceutical-grade PE bottle blowing machine applications, with servo motors on all axes, oil-free operation, and real-time quality monitoring.
PE Blowing Machine Output Capacity: Small to Large Volume Production
Output capacity is a key consideration when investing in a blow molding machine. Ziqiang machines cover a wide range of production scales:• Small Scale (ZQ40/ZQ60): 1,000–3,000 bottles/hour — ideal for startups, specialty bottles, or low-volume pharmaceutical runs.
• Mid Scale (ZQ80/ZQ110): 3,000–6,000 bottles/hour — suited for cosmetic brands, food packaging, and mid-volume pharma producers.
• High Scale (ZQ135): 6,000–10,000+ bottles/hour — designed for large-scale manufacturers supplying retail chains or hospitals.
Output depends on bottle size, number of cavities, and cycle time. Our engineers will calculate the exact output for your specific bottle design. Contact us for a detailed production analysis.

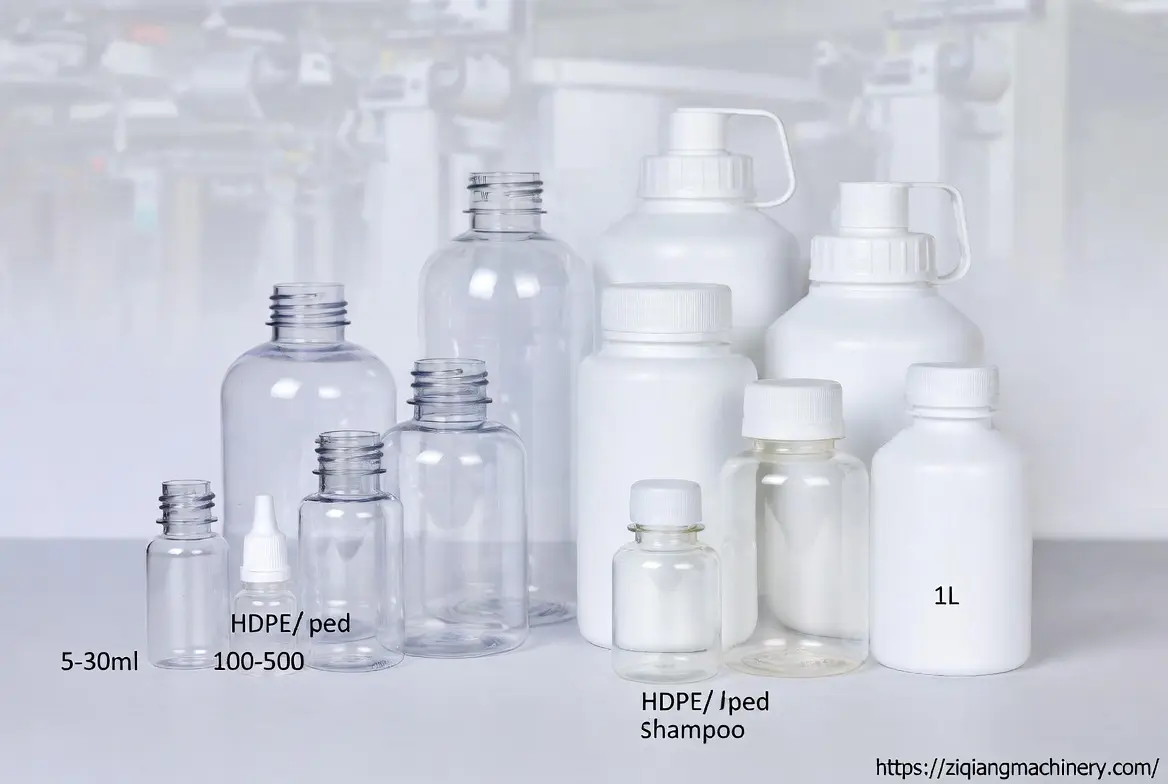

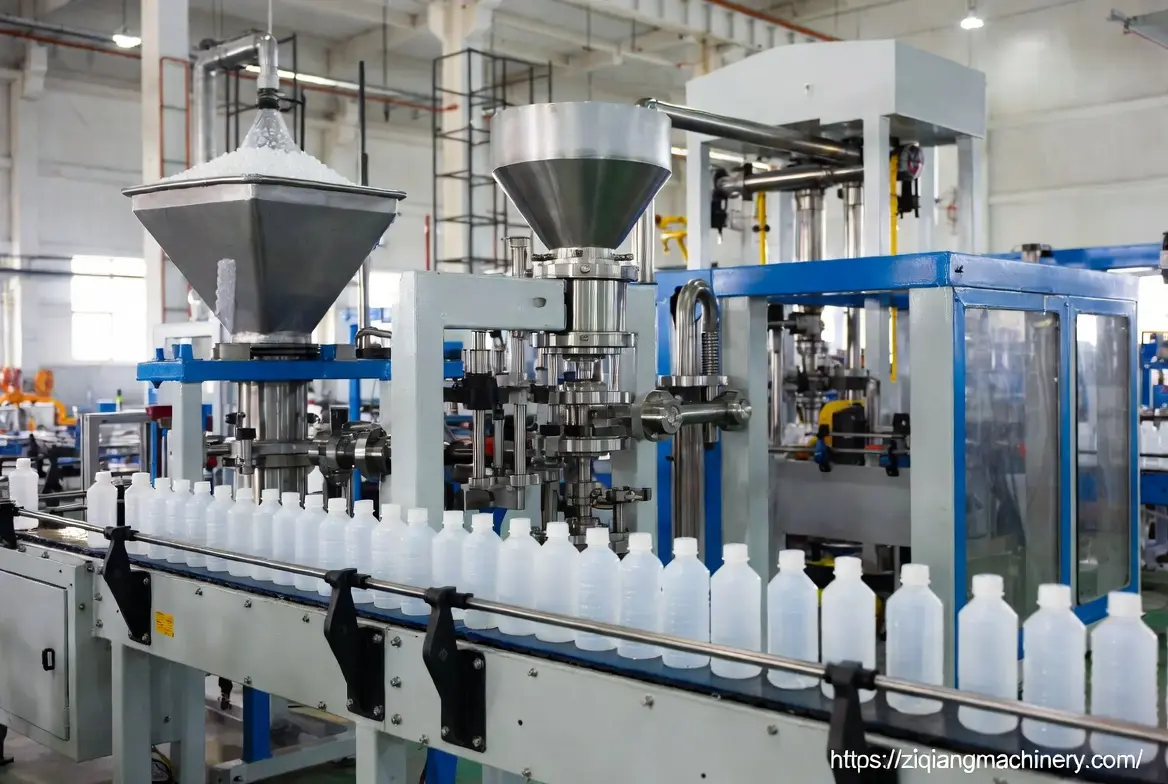

PE Blowing Machine Applications: Pharmaceutical, Cosmetic & Food Bottles
Pharmaceutical Bottles
Ziqiang IBM machines produce medicine bottles, tablet containers, syrup bottles, and eye drop bottles with precise neck dimensions and clean finishes. Full electric models meet cleanroom requirements.Cosmetic & Personal Care Packaging
Shampoo bottles, lotion containers, cream jars, and serum bottles produced with high-gloss, consistent wall thickness and premium finish using our servo blow molding machines.Food & Beverage Packaging
Edible oil bottles, sauce containers, honey jars, and seasoning bottles manufactured with FDA-compliant PE material and precise sealing necks.Household & Industrial Containers
Cleaning fluid bottles, lubricant containers, and agricultural chemical bottles produced at high speed with our EBM and IBM blow moulding machines.Eye Drop & Medical Bottles
Ultra-precision small bottles (5ml–30ml) with pharmaceutical-grade neck tolerances — a specialty of Ziqiang's ZQ40 and ZQ60 injection blow molding machines.Which Industries Use PE Blowing Machines? Full Application Guide
Here is a complete overview of the industries that rely on PE blowing machines globally:| Industry | Common Bottles Produced | Recommended Machine |
| Pharmaceutical | Medicine, eye drops, syrup, vitamins | ZQ40 / ZQ60 / ZQ135HE (Full Electric) |
| Cosmetics | Shampoo, lotion, serum, cream | ZQ60 / ZQ80 (Servo) |
| Food & Beverage | Oil, sauce, honey, water | ZQ80 / ZQ110 |
| Agriculture | Pesticide, fertilizer, chemicals | ZQ110 / ZQ135 (EBM) |
| Household | Detergent, bleach, cleaning fluids | ZQ110 / ZQ135 |
| Medical Devices | Sample containers, reagent bottles | ZQ40 / ZQ60 (Full Electric) |
PE Blowing Machine Price: Factory Direct Cost vs Market Price
One of the most common questions buyers ask is: "How much does a PE blowing machine cost?" The price varies depending on model, configuration, and order quantity. Here is a general price comparison:| Machine Type | Market Price (Trading Company) | Ziqiang Factory Direct Price | Your Saving |
| Entry-level IBM (ZQ40) | $18,000 – $25,000 | Contact for Factory Quote | 10–25% |
| Mid-range IBM (ZQ80) | $30,000 – $45,000 | Contact for Factory Quote | 10–25% |
| High-end IBM (ZQ135HE) | $55,000 – $80,000 | Contact for Factory Quote | 10–25% |
| Extrusion BM (EBM) | $20,000 – $60,000 | Contact for Factory Quote | 10–25% |
Buying directly from a blow molding machine manufacturer like Ziqiang eliminates middlemen, trading company markups, and commission fees. You get the factory price plus direct technical support, faster lead times, and a genuine warranty.
How to Choose the Right PE Blowing Machine for Your Production Line
Choosing the right blow moulding machine is critical for your ROI. Follow these steps to make the right decision:• Define Your Bottle Requirements: Volume (ml/L), neck diameter, material (HDPE/LDPE), wall thickness, and any special features like handles or labels.
• Estimate Your Daily Output Needs: How many bottles per day or shift do you need? This determines the machine model and number of cavities.
• Choose the Right Drive System: For pharmaceutical use, choose full electric. For cosmetics/food, servo is the best balance of efficiency and cost.
• Consider Your Budget: Factory-direct pricing from Ziqiang gives you the best value. Ask about financing or payment terms for large orders.
• Check Certifications: Always buy CE-certified machines. Ziqiang machines comply with international safety and quality standards.
• Request a Factory Visit or Video Inspection: Ziqiang offers virtual factory tours and pre-shipment inspections to give you full confidence before payment.
Why Buy a PE Blowing Machine Directly from a China Manufacturer?
China is the world's largest producer of blow molding machines, and for good reason. Here is why buying directly from a Chinese injection molding machine manufacturer like Ziqiang makes business sense:• Factory Direct Pricing: No trading company markup. You pay the real manufacturing cost, saving 10–25% compared to intermediary prices.
• Full Customization: Mold design, machine configuration, cavities, and automation level — all customizable to your exact production needs.
• Fast Lead Times: Ziqiang maintains ready stock of standard models and can ship within 15–30 days of order confirmation.
• Direct Technical Support: Engineers who built your machine are available to support you — no third-party communication delays.
• Global Shipping: Ziqiang ships to 30+ countries with full export documentation, CE certification, and sea freight coordination.
• After-Sales Service: 12-month warranty, spare parts availability, and remote troubleshooting via video call.
Why Choose Ziqiang? 20+ Years of PE Blow Molding Machine Experience
| Why Ziqiang? | Details |
| Experience | 20+ years specializing in IBM, EBM & ISBM machines |
| Factory | 1,000+ sqm production facility in Zhangjiagang, Jiangsu, China |
| Team | 50+ skilled engineers and technicians |
| Certifications | CE certified — compliant with EU machinery directives |
| Global Reach | Customers in 30+ countries across Asia, Europe, Africa & Americas |
| Product Range | Full ZQ series: ZQ40, ZQ60, ZQ80, ZQ110, ZQ135 + EBM + ISBM |
| Customization | Custom molds, cavities, colors, and automation levels available |
| After-Sales | 12-month warranty, spare parts, remote & on-site support |
Ziqiang is not a trading company. We are the blow molding machine manufacturer. When you buy from us, you buy directly from the factory — with full transparency, real pricing, and reliable support.
Get a Free Quote: Factory Direct PE Blowing Machine Price Today
Ready to invest in a PE blowing machine that delivers consistent quality, high output, and factory-direct value? Ziqiang Machinery is ready to help.Here is what you get when you contact us:
• Free technical consultation with our engineering team
• Custom machine recommendation based on your bottle specs
• Factory direct price quote — no middleman, no hidden fees
• Free mold design review for new bottle projects
• Option for virtual factory tour or video inspection
• Flexible payment terms for qualified buyers
Contact us today via WhatsApp at +86 13913614902 or email us at isabel@ziqiangmachine.com. You can also visit our website at ziqiangmachinery.com to explore the full ZQ product lineup.
Ziqiang Machinery — Your trusted PE blowing machine manufacturer. Factory quality. Factory price. Global delivery.
