If you source injection blow molding machines from China, one point will save you time. The market uses the phrase “PET injection blow molding” for more than one setup. Technically, clear PET bottles are made on injection stretch blow molding (ISBM) machines. The classic injection blow molding (IBM) machine suits resins such as HDPE, LDPE, PP, PS and PCTG.
Zhangjiagang Ziqiang Machinery Co., Ltd. (ZIQIANG) builds both types. This guide explains how each works, which one fits your bottle, what to check in a PET injection blow molding machine specification, and what to send us for an accurate quotation.

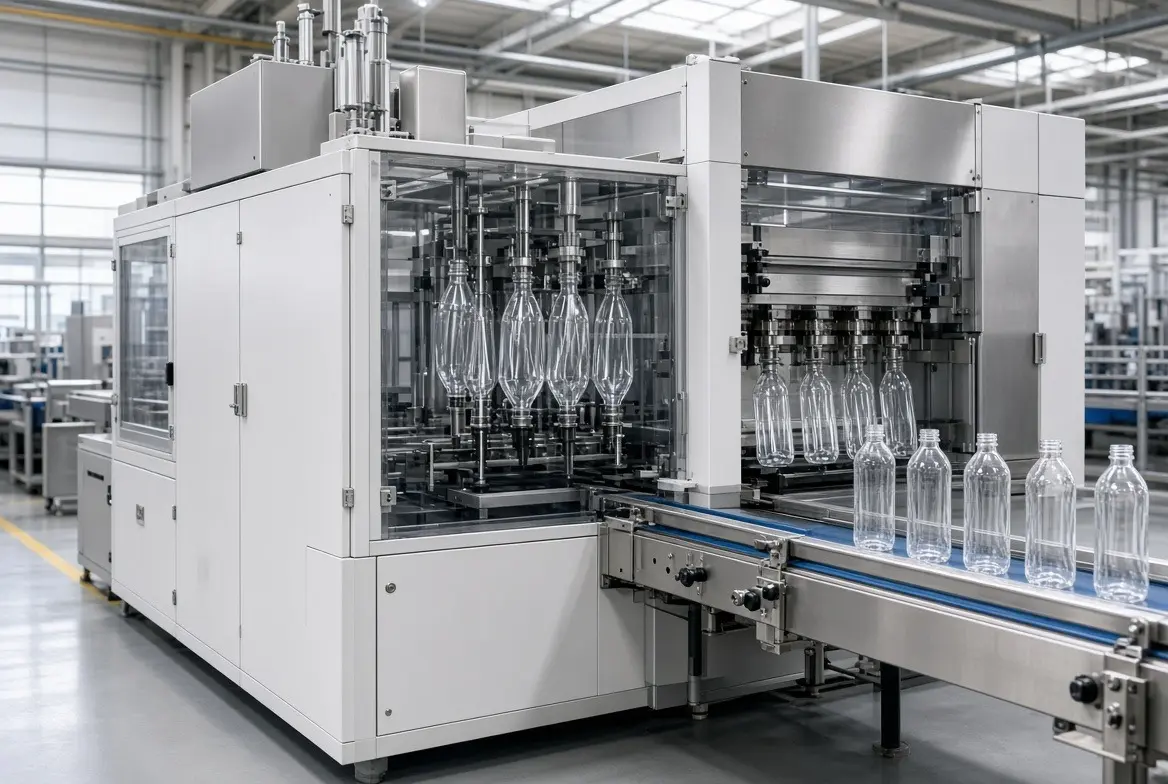

High-Precision PET Injection Blow Molding Machines for Bottles and Containers
PET is popular for water, beverage, edible oil, cosmetic and pharmaceutical packaging because it gives bottles clarity and strength. A plastic injection blow molding machine combines two steps. It injection molds a preform with the final neck and thread, then blows that preform into the bottle shape inside a mold. Because the neck is molded, not cut, threads stay accurate and the bottle needs no flash trimming.
For PET, the process adds a stretching step. A stretch rod pulls the preform lengthwise while compressed air blows it outward. This two-way stretch gives PET bottles their clarity and strength. ZIQIANG’s one-step machines run injection, conditioning and blowing in one machine, so operators do not touch the preform during production.
PET Injection Blow Molding or Classic IBM: Which Machine Do You Need?
• Clear, strong PET bottles, including special shapes: choose a one-step injection stretch blow molding machine from our ZQY series. Typical products include medicine, cosmetic, baby and water bottles.• Small precision bottles in HDPE, LDPE, PP, PS or PCTG: choose a ZQ series IBM machine (ZQ40, ZQ60, ZQ80, ZQ110 or ZQ135) for pharmaceutical, eye drop, cosmetic and food packaging.
• Large containers, drums or handle bottles: consider extrusion blow molding instead.
Our guide Types of Blow Molding Machine: 3 Main Types Explained compares all three technologies in detail.
How a PET Injection Blow Molding Machine Works: From Injection to Finished Bottle
A one-step machine moves the preform through several stations on one frame. The cycle has four stages:1. Preform injection. A screw melts the PET resin and injects it into the preform mold. This forms the neck, thread and body of the preform.
2. Temperature conditioning. The preform is brought to an even blowing temperature, so it stretches without thin spots.
3. Stretch and blow. A stretch rod and compressed air expand the preform against the bottle mold.
4. Ejection. The finished bottle is released and the cycle restarts.
Machines with three or four stations work on several preforms at the same time, which keeps the cycle short. Our one-step models come in three-station and four-station layouts. Because the process is continuous, you need no separate preform molding line, and the preform sees much less handling.
PET Injection Blow Molding Machine Specifications, Models and Bottle Size Range
The table below lists reference data from the One Step Injection Stretch Blow Molding Machine page for the ZQY range. Use it to shortlist a model, then confirm the details for your own bottle.| Model | Cavities | Bottle capacity (L) | Screw (mm) / injection capacity (g) | Clamping force, injection / blow (kN) | Machine weight (kg) |
| ZQY50-V3 | 1–6 | 2.5 (1 cavity) to 0.1 (6 cavities) | 40 / 188 | 50 / 70 | 3,000 |
| ZQY50-V3-EV | 1–6 | 2.5 (1 cavity) to 0.1 (6 cavities) | 40 / 183 | 50 / 70 | 3,000 |
| ZQY150-V3 | 1–6 | 2.5 (1 cavity) to 0.1 (6 cavities) | 50 / 315 | 150 / 120 | 6,000 |
| ZQY150-V4 | 1–8 | 2.5 (1 cavity) to 0.02 (8 cavities) | 50 / 315 | 150 / 120 | 6,000 |
| ZQY250-V4 | 1–12 | 10 (1 cavity) to 0.1 (12 cavities) | 64 / 785 | 200 / 200 | 9,000 |
The ZQY150-V3 and ZQY50-V3-EV have three stations. The ZQY150-V4 and ZQY250-V4 have four. Single-cavity capacity reaches 2.5 L on the ZQY50-V3, ZQY50-V3-EV, ZQY150-V3 and ZQY150-V4, and 10 L on the ZQY250-V4. Multi-cavity layouts make smaller bottles, down to 0.02 L on the ZQY150-V4.
Our IBM line covers five models: ZQ40, ZQ60, ZQ80, ZQ110 and ZQ135. Drive options include all-electric, servo and hydraulic. See the full range on our Injection Blow Molding Machine page, and ask for each model’s specification sheet to compare clamping force, shot size and cycle time.

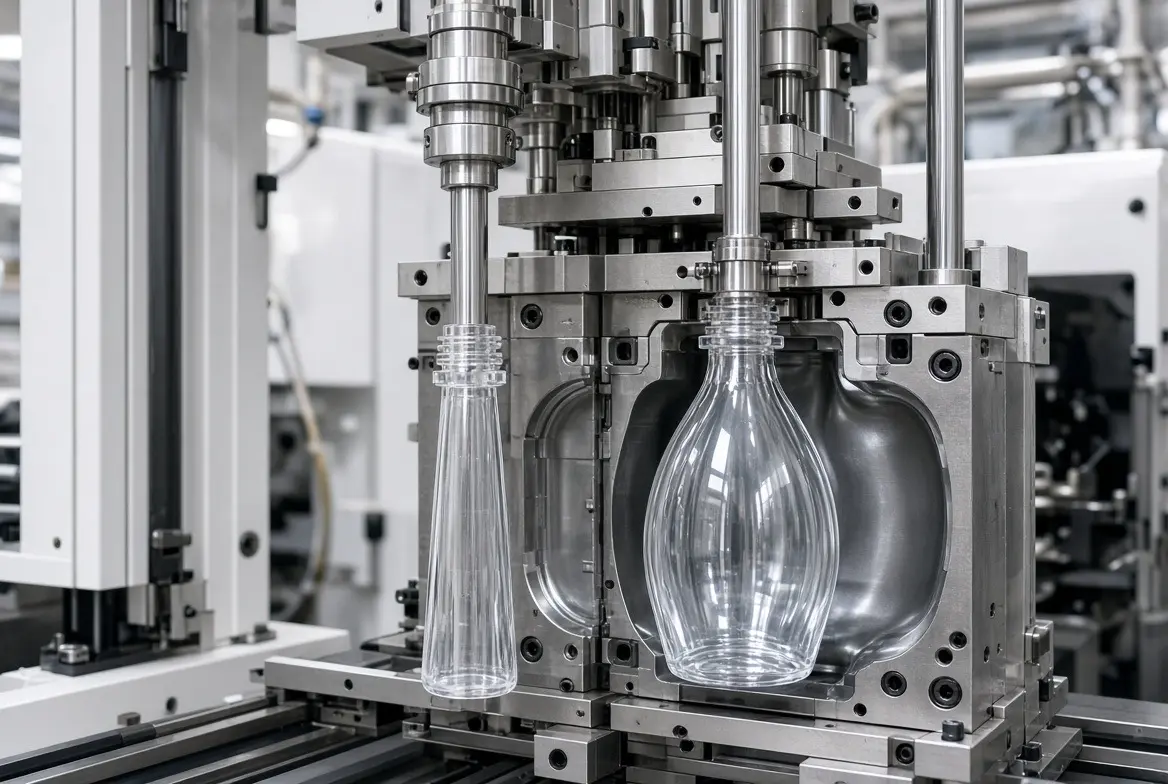

Automatic PET Injection Blow Molding Machine with PLC Touch Screen Control
A fully automatic cycle reduces labor and keeps bottle weight consistent from shift to shift. ZIQIANG machines use a PLC touch screen control system. According to our product page, it offers one-click operation and real-time production monitoring, which helps limit operator error.
For buyers, three practical points matter:
• Simple operation. New operators can learn the machine quickly.
• Parts sourcing. Ask which PLC, hydraulic and electrical brands the machine uses, so you can buy spare parts locally.
• Local power. Confirm voltage and power supply for your country before you order.
±0.01mm Molding Accuracy for Consistent Wall Thickness in PET Containers
Wall thickness decides bottle strength, weight and appearance. ZIQIANG lists ±0.01mm molding accuracy on its product pages. Accuracy also depends on mold quality, preform temperature and resin grade, so treat any figure as a starting point. A well-made injection blow mold is the base of consistent quality. Ask for sample bottles or a trial with your own design, and measure them yourself.Up to 30% Energy Saving Compared with Conventional Blow Molding Equipment
ZIQIANG states up to 30% energy saving compared with conventional equipment. Your real saving depends on the drive system, cycle time and local electricity cost. All-electric machines typically use less power but cost more upfront. Servo machines balance efficiency and investment. Hydraulic machines usually have the lowest purchase price. Ask us for a running-cost comparison over several years, not only the machine price.PET Injection Blow Molding Solutions for Pharmaceutical, Cosmetic and Food Bottles
Our Application page shows finished bottle examples across many markets. Buyers most often ask about these groups:• Pharmaceutical: pill bottles, eye drop bottles, dry syrup bottles and medicinal spray bottles.
• Cosmetic and personal care: cosmetic bottles and jars, shampoo, body wash and hand wash bottles.
• Food and beverage: food bottles, beverage bottles and drinking water containers.
• Household and chemical: dish soap bottles, chemical bottles and squeeze bottles.
Confirm the resin before you order. PET suits clear beverage, cosmetic and baby bottles. PE and PP suit many pharmaceutical and household bottles.
GMP-Compliant PET Injection Blow Molding for Vials, Pill Containers and Daily Chemical Bottles
ZIQIANG’s product pages state that the one-step process meets GMP requirements, because no one touches the product during production. Pharmaceutical buyers should still confirm the documents their market requires. Discuss cleanliness needs early, since they affect machine configuration and auxiliary equipment.Professional PET IBM Machine Manufacturer in Zhangjiagang, China
Zhangjiagang Ziqiang Machinery Co., Ltd. researches, produces and sells automatic one-step injection-blowing machines and matching molds. Our address is Tangqiao Town, Zhangjiagang City, Jiangsu Province.20+ Years of Experience and Export Reach
• 20+ years of industry experience in blow molding equipment• A team of 50+ employees and a production area of 1000+ ㎡
• Customers in 30+ countries and regions
• Exhibited at CHINAPLAS 2026 in Shanghai (April 21–24, 2026)
Buyers in the USA, Mexico, Germany, the UAE, India, Brazil and South Africa usually ask the same questions. Can the machine run my bottle and resin? Which spare parts should I stock? What documents do I need for customs? We answer these before you pay a deposit.
PET Injection Blow Molding Machine Supplier with OEM/ODM Mold Customization
Every bottle is different, so the machine and mold should match your product. ZIQIANG offers OEM/ODM customization for machines and molds, based on your bottle size, cavity number and production process. We also supply auxiliary equipment, so one team supports the whole project.Send these details for a faster, more accurate proposal:
• Bottle drawing, 3D file or physical sample
• Bottle volume, neck size and weight
• Resin type and grade (PET, PP, HDPE or other)
• Target output per hour or per year
• Required voltage and power supply
• Destination port and delivery time
Our engineers can review your design before mold making and suggest changes that improve molding quality and reduce cost.
Factory-Direct PET Injection Blow Molding Machines with Installation and After-Sales Support
Buying direct from the factory removes extra layers between you and the engineers who build your machine. ZIQIANG provides pre-sale, sales and after-sale service. Confirm the exact scope of installation guidance, operator training and spare parts support in your contract.What Affects Injection Blow Molding Machine Price?
We do not publish fixed prices, because a fair quote needs your product details. These factors drive the injection blow molding machine price:• Model, size and clamping force
• Number of cavities and mold complexity
• Drive system: all-electric, servo or hydraulic
• Automation level and auxiliary equipment
• Voltage and local standards
• Packing, shipping terms and training
Compare quotations on the same specification. Check whether the mold, spare parts and training are included. A low machine price can hide high mold or spare-part costs later.
Supplier Checklist for International Buyers
• Ask for a running video of the exact model, not a generic demo• Request bottle samples or a trial with your own design
• Ask which brands supply the hydraulic, pneumatic and electrical parts
• Confirm the warranty, spare parts list and remote support
• Check the documents your market requires, such as CE documentation for Europe
• Get payment terms, lead time and packing method in writing
FAQ About PET Injection Blow Molding Machines
What is a PET injection blow molding machine?
It is a machine that molds a PET preform and blows it into a finished bottle in one automatic process. For PET, the process includes a stretching step, so the machine is an injection stretch blow molding machine. ZIQIANG supplies this as a one-step ZQY series.Can an IBM machine run PET resin?
Our ZQ series IBM machines are built for resins such as HDPE, LDPE, PP, PS and PCTG. For PET bottles, we recommend a one-step injection stretch blow molding machine. Send your bottle details and we will confirm the right model.What bottle sizes can your one-step machines make?
Single-cavity bottles reach 2.5 L on the ZQY50 and ZQY150 models and 10 L on the ZQY250-V4. Multi-cavity layouts make smaller bottles, down to 0.02 L on the ZQY150-V4.Should I choose an all-electric, servo or hydraulic machine?
Choose all-electric for precision and low energy use, servo for a balance of cost and efficiency, and hydraulic for a lower purchase price. Your output target and electricity cost should guide the decision.Can ZIQIANG customize the machine and mold?
Yes. ZIQIANG offers OEM/ODM support for machines and molds. Send your bottle drawing or sample so our engineers can propose a suitable setup.What information do I need to request a quotation?
Send the bottle drawing or sample, bottle volume, neck size, resin type, target output, voltage requirement and destination port. With these details, we can prepare an accurate quotation.Build an Efficient PET Bottle Production Line with Ziqiang Machinery
The right PET injection blow molding machine depends on your bottle, resin and output target. Choose a one-step injection stretch blow molding machine for clear PET bottles. Choose an IBM machine for small precision bottles in PE, PP, PS or PCTG. Then compare suppliers on full quotations, mold quality and support, not on price alone.Ready to discuss your project? Contact us with your bottle drawing, resin type and target output. Our team can share product details, a quotation, customization options and technical support for your market.
